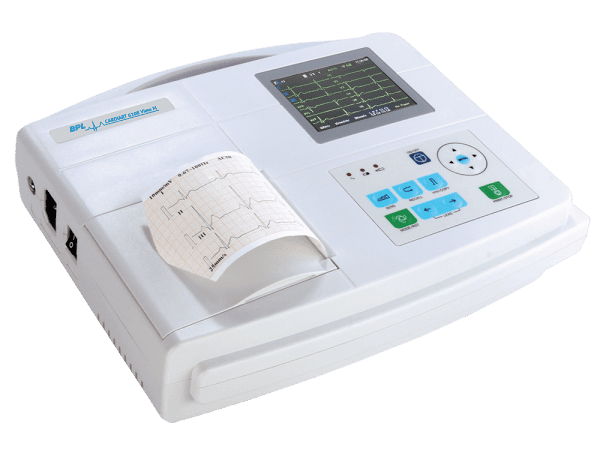

BPL Cardiart 6208 Features
- Three-channel ECG recording
- 3.5 inch color LCD screen
- Automatic measurement and interpretation
- ≥12-bit A/D converter, 0.05 – 150 Hz bandwidth, 1000 Hz sampling frequency
- Internal storage for up to 500 ECGs that can be enlarged by USB
- High performance Li-ion rechargeable battery
- Report formats: PDF and optional SCP/FDA-XML/DICOM
- Connectivity: FTP, supports barcode scanner & USB Printer
- Optional: PC interface software
Product Specification
Technical Specification
| Input Circuit | Floating input circuit, protection from defibrillation and pace maker |
| Lead | Standard 12 leads |
| Acquisition mode | Simultaneous 12 lead acquisition |
| A/D converter | 12 bits |
| Input voltage range | +/- 5mVp-p |
| Time constant | >=3.2s |
| Frequency response | 0.05Hz-150Hz |
| Calibration voltage | 1mV +/-3% |
| Sensitivity | 2.5, 5, 10, 20 (mm/mV) |
| Input impedance | >=50Mohms |
| Input circuit current | <=50nA |
| Noise level | <=15uVp-p |
| Anti Baseline Drift | Automatic |
| Patient leakage current | <10uA (220V-240V) |
| Patient auxiliary current | <0.1uA (DC) |
| Filters | EMG filter 25Hz / 35Hz / 45Hz / OFF Anti-baseline drift 0.05Hz / 0.15Hz / 0.25Hz / 0.5Hz Low-pass filter 75Hz / 100Hz / 150Hz AC filter 50/60Hz |
| CMRR | >=110dB |
| Power supply | 100-240 VAC, 50Hz / 60Hz, 70VAC |
| Battery | Built-in rechargeable Li-ion battery 14.4V for 3 hours of continuous operation |
| Recorder | Thermal printer |
| Print Channels | Manual: 3, 3/2, 1CH Auto: 3, 3×2, 3+1R, 1, 1+1R CH Rhythm: Single Lead |
| Recording paper | 80mm x 20m |
| Recording speed | 5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s (+/- 3%) |
| Weight | Approx 2.5kg (with battery) |
| Dimensions | 300mm x 260mm x 75mm |
| Display | Wide Screen Display |
| External input | 100K Ohm, sensitivity 10mm/V +/-5% |
| External output | 100Ohm, sensitivity 1V/mV +/-5% |
| Communication ports | Ethernet and RS232 |
| Standard Accessories | Power Cord – 1pc Patient Cable – 1 pc Chest Electrodes – 6 pcs Limb Electrodes – 4 pcs Thermal Recording Paper – 1 pc |
| Model | BPL Cardiart 6208 |
| Type | Digital |
| Number of Channels | 3 |
| Application | Clinical |
| Brand | BPL |
| Power Source | Electric |
| Voltage | 220 V |
Country Of Origin – India
Warranty – 1 Year
In the Box
- ECG Cable
- Bulb Electrode
- Clamp Electrode
- Gel Bottle
- ECG Paper Roll
- Battery
- Power Cable
- User Manual
