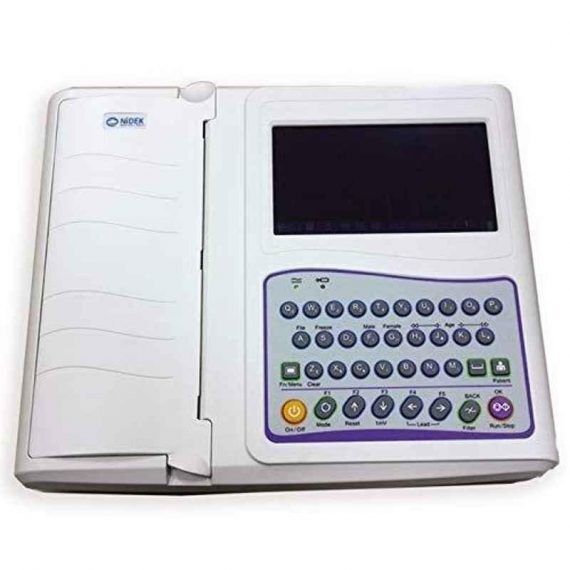

Nidek 12 Channel ECG Product Highlights
- Portable 12 Channel ECG machine
- Manual / Auto / Arrhythmia Analysis Modes
- 7 inch LCD
- Alphabetic keyboard for patient information
- Built-in rechargeable Li-Ion battery
- Real-time ECG waveform, cases save / replay
- Adapt to 110 – 230V, 50 / 60 Hz, AC power supply
- Built-in USB / RS232 interface (ECG NET Software optional)
| Display: | LCD 7″, 800 x 480 |
| Paper: | 210mm x 216mm/20m roll paper |
| Battery: | 14.4V (4400 mAH) Li-lon battery |
| Dimensions: | 320mm x 270mm x 66mm |
Technical Specifications
| Lead | Standard 12 Leads |
| Acquisition | Simultaneous 12 Leads |
| Resolution | 12 bit/1000 Hz |
| Operation Mode | Manual/ Auto/RR/ Store Modes |
| Filter | Ac, EMG Filter |
| Drift Filter | Anti-Drift System: 0.15Hz (Adaptive) |
| CMRR | ≥ 120 DB with AC Filter |
| Input Circuit | Floating, Protection Against Defibrillator effect |
| Input Circuit Current | ≤ 0.05 A
|
| Input Impedance | > 50 M |
| Patient Current Leakage | < 10 A |
| Calibrating Voltage | 1mV ± 2% |
| Voltage Tolerance | ± 500mV |
| Time Constant | > 3.2s |
| Frequency Response | 0.05Hz – 160Hz (-3dB) |
| Noise Level | ≤ 15 |Vp-p |
| Threshold | ≤ 20 | V |
| Paper Speed | 6.25, 12.5, 25, 50 mm/st(±3%) |
| Sensitivity | Auto, 2.5, 10, 20, 40mm/mV |
| Recorder | High-Resolution thermal printer |
| Safety Standard | GB9706.1- 2007, IEC Class I, Type CF |
Country Of Origin – India
Brand Warranty – 1 Year
In The Box
- Nidek 12 Channel ECG Machine -712
- unit Of ECG Cable
- Set of Bulb Electrode
- Set Clamp Electrode
- unit of Power Cable
- unit of Earthing Cable
- ECG paper roll
- User Guide
