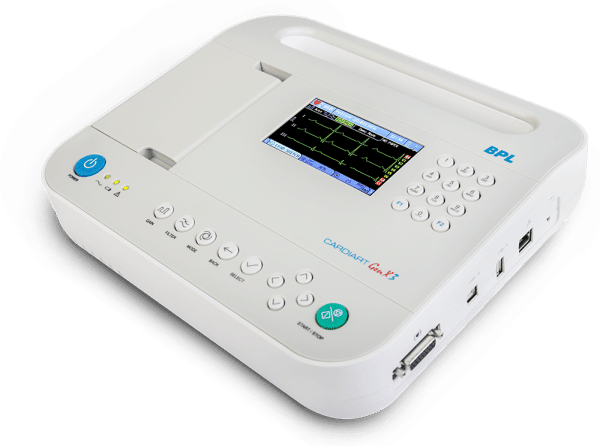

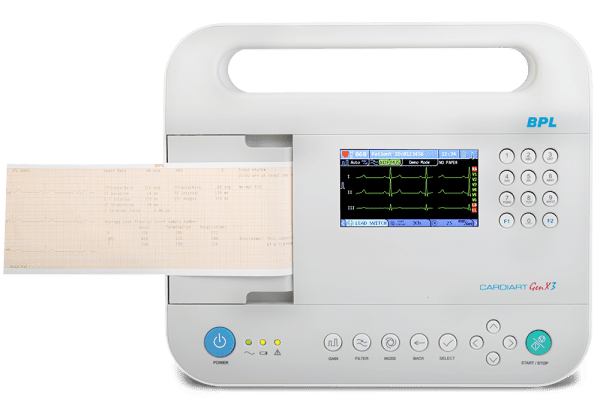

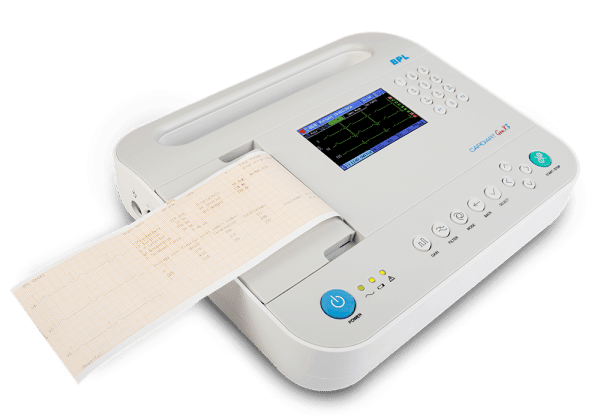

BPL Cardiart GenX3 Features
- Three-channel ECG recording with trace darkness control
- Wide 4.3 inch 65K Color TFT display
- Glasgow ECG Interpretation algorithm
- 12-bit A/D converter, 0.05 – 150 Hz bandwidth, 1000 Hz sampling frequency
- Alphanumeric keypad with soft silicone keys
- Full disclosure view of ECG analysis on display
- Internal storage of upto 250 ECGs that can be enlarged by USB
- Rechargeable Li battery for energy-efficient operation
- Connectivity: supports USB printer, optional FTP, export selected record(s) in HL7 format
- Optional: Real-time ECG transfer to PC through USB
Product Specification
| Model | BPL Cardiart GenX3 |
| CMRR | Greater than 90dB at 50Hz |
| Time Constant | Greater than 3.2 seconds |
| Weight | Approx. 2 Kgs |
| Power Consumption | Less than 60 VA |
| Brand | BPL |
| Dimension | Approx. 300mm x 260mm x 80 mm (length x width x height) |
| Power Supply | 100-240 V AC; 50/60 Hz |
| Display | 4.3 inch Color TFT LCD with 480 x 272 pixel resolution; 65k Color |
| Input Impedance | Greater than 10 M ohm at 10 Hz |
| Mains Protection | Fuse T2A 250 V |
| Paper Transport Speed | 5 mm/ sec or 12.5 mm/ sec or 25mm/ sec or 50 mm/ sec |
| Thermal Paper | In rolls Height 80mm,Length 20m,gridded |
| Keyboard | Silicone Rubber keypad with 23 keys & 4 LED indicators |
| Startup Time | Greater than 4 seconds |
| Record Storage | 250 ECGs in internal memory |
| ECG Analysis Sampling Rate | 500 samples/ second (sps) |
| Operating Temperature | +10 to +40 degree C |
| Relative Humidity | Upto 95% RH Non-condensing |
| ECG Acquisition | 12 bits,1000 samples/ sec/ channel |
| Battery | Rechargeable Lithium battery 11.1V dc,3000mAh |
| Storage Temperature Or Transport Temperature | -10 degree C to 50 degree C |
| ADC Resolution | 2.55 microV/LSB |
| Print Channel | 3 Channel + 1 Rhythm or 3 Channel,Manual 3 Channel |
| Frequency Response | 0.05 Hz to 150 Hz (-3dB) without Mains /Muscle and ADF Filters |
Country Of Origin – India
Warranty – 1 Year
In The Box
- ECG machine
- ECG Cable
- Bulb Electrode
- Clamp Electrode
- Gel Bottle
- Power Cable
- User Mannual
