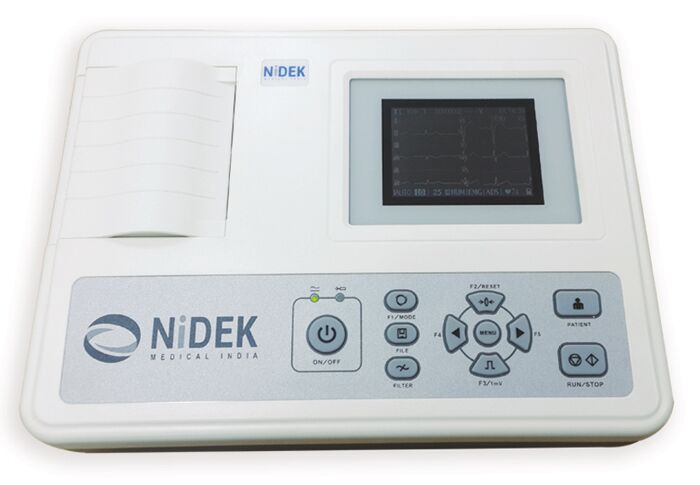

Nidek 3 Channel ECG Product Features
- Nidek 3 Channel ECG machine with Interpretation
- Manual / Auto / Arrhythmia Analysis Modes.
- 80mm 3 Channel recording with rhythm lead
- Built in rechargeable Ni-MH battery.
- Real-time ECG waveform, cases save / replay
- Adapt to 110 – 230V, 50 / 60 Hz, AC power supply .
- Built in USB / RS232 interface (ECG NET Software optional)
ECG Product Specification
| Model Name/Number | NIDEK 703 |
| Machine Type | Digital |
| Brand | NIDEK |
| Model | 703 |
| Application | Clinical, Hospital |
| Lead | Standard 12 Leads |
| Acquisition | Simultaneous 12 Leads |
| Resolution | 12 bit/1000 Hz |
| Operation Mode | Manual/ Auto/RR/ Store Modes |
| Filter | Ac, EMG Filter |
| Drift Filter | Anti-Drift System: 0.15Hz (Adaptive) |
| CMRR | ≥ 120 DB with AC Filter |
| Input Circuit | Floating, Protection Against Defibrillator effect |
| Input Circuit Current | ≤ 0.05 A
|
| Input Impedance | > 50 M |
| Patient Current Leakage | < 10 A |
| Calibrating Voltage | 1mV ± 2% |
| Voltage Tolerance | ± 500mV |
| Time Constant | > 3.2s |
| Frequency Response | 0.05Hz – 160Hz (-3dB) |
| Noise Level | ≤ 15 |Vp-p |
| Threshold | ≤ 20 | V |
| Paper Speed | 6.25, 12.5, 25, 50 mm/st(±3%) |
| Sensitivity | Auto, 2.5, 10, 20, 40mm/mV |
| Recorder | High Resolution thermal printer |
| Safety Standard | GB9706.1- 2007, IEC Class I, Type CF |
Country Of Origin – India
Brand Warranty – 1 Year
In the Box
- ECG Cable
- Bulb Electrode
- Clamp Electrode
- Power Cable
- Earthing Cable
- ECG paper roll
- User Guide
