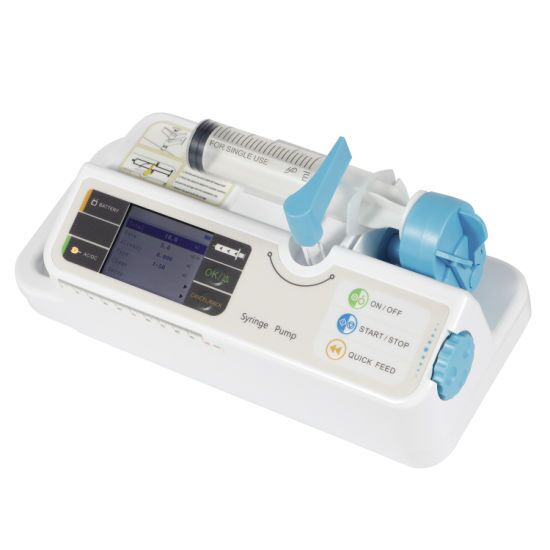

CONTEC Syringe Pump SP950 | Megamed

CONTEC Syringe Pump SP950 Features

1) Infusion rate and total volume can be set by the user.
2) Alarms for infusion pipe occlusion, syringe fall-off, communication abnormal, low battery.
3) Bright, alarm volume and range of pressure alarm are adjustable.
4) Quick feed function, convenient for supplying medicine quickly and instantaneously.
5) Enter KVO mode after the infusion is completed.
6) The system will give a prompt signal when there is no operation at the power-on state.
7) Built-in rechargeable battery provides such functions as auto-switch power supply and auto-charge.
8) Display parameters on a large screen, and give prompt information with visual, auditory, and character signals, which is convenient for medical persons to operate on.
9) The device can be equipped with a disposable syringe (CNS), and accuracy can be ensured by adjusting parameters.

Performance

1) Specification requirement for syringe: 10ml/20ml/30ml/50ml (CNS)
2) Infusion rate:
10ml            0.1ml/h-100ml/h
20ml            0.1ml/h-200ml/h
30ml            0.1ml/h-300ml/h
50ml            0.1ml/h-500ml/h
3) Rate of quick feed:
10ml            100ml/h
20ml            200ml/h
30ml            300ml/h
50ml            500ml/h
4) Accumulated volume display: 0ml-999.9ml
5) Accuracy: ±3%
6) Pressure range for occlusion alarm:
Three grades are adjustable:
Low: 40KPa ± 16KPa
Middle: 70KPa ± 30KPa
High: 100KPa± 35KPa
7) KVO rate: 0.1ml/h~5ml/h, adjustable
8) Safety classification: Class Ⅱ equipment, internally powered type BF
9) Alarm function: ①At non-operated state ②Near empty ③Empty, enter KVO mode ④Syringe fall-off ⑤Occlusion ⑥Pressure failure ⑦Motor failure ⑧Low battery ⑨Communication abnormal
10) Maximal power consumption: 20VA~30VA, the device can continuously work for at least two hours with the injection rate of 5ml/h or 500ml/h after fully charged.
11) Power supply: AC100~240V   50/60Hz
12) Battery: rechargeable lithium battery, 7.4V, 3500mAh
13) Working environment: Temperature: +5~40℃; Atmospheric pressure: 860hPa~1060h; Relative humidity: 20%~90%; no strong vibration and no corrosive gas.
14) Storage environment: Temperature: -20℃~+55℃; Relative humidity: ≤90%, no condensation; No corrosive gas and well-ventilated

Accessories

Syringe Pump
A bracket
A power cord
A user manual
Two fuses

Physical characteristic

Dimension: 310mm*140mm*135mm(L×W×H)
Weight: 1.7kg

Brand- Contec

Warranty – 1 Year

Country of Origin – China
