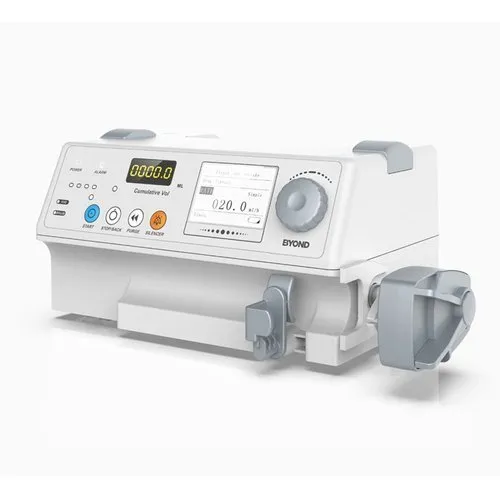

Byond BYZ-810 Syringe Pump Highlights
Easy operation
Brand new appearance provides a better experience
Clear LCD and digital tube dual display
Simple rate mode with one key start, easy to operate
Precision
Three occlusion levels for option
Intelligent recognition of the 10ml、20ml、30ml、50ml(60ml) syringe, can work with any brand syringe after calibration
Intelligent
low noise and less vibration are supported by the application of motor driver IC imported from Germany and motor imported from Japan.
A unique voice, word, and light combination alarms, very faster and reliable
Stackable
Specification of Byond BYZ-810 Syringe Pump
| Unique Human Voice Alarm system | The device triggered the human voice prompt and stop the injection automatically when there is any malfunction, making the infusion process safer and more reliable. |
| Rate: | 50/60ml Syringe: 0.1ml/h ~ 999.9ml/h (0.1ml/h step) 1,000ml/h ~ 1,500ml/h (1ml/h step) 30ml Syringe: 0.1ml/h ~ 900.0ml/h (0.1ml/h step) 20ml Syringe: 0.1ml/h ~ 600.0ml/h (0.1ml/h step) 10ml Syringe: 0.1ml/h ~ 300.0ml/h (0.1ml/h step) |
| Flow Rate Accuracy | Within ±3% (after correct calibration) |
| Mechanical precision | Within ±2% |
| Bolus Rate | 50/60ml Syringe: 1,200ml/h 30 ml Syringe: 720ml/h 20 ml Syringe: 480ml/h 10 ml Syringe: 240ml/h |
| Purge Rate | 50/60ml Syringe: 1,500ml/h 30ml Syringe: 900ml/h 20ml Syringe: 600ml/h 10ml Syringe: 300ml/h |
| Volume Limit | 0.1ml ~ 9999.9ml (0.1ml step) |
| Total Injection Volume | 0.1ml ~ 9999.9ml (0.1ml step) |
| Occlusion of Single Channel Syringe Pump | High: 800mmHg ±200mmHg (106.7kPa±26.7kPa) Medium: 50/600mmHg ±100mmHg (66.7kPa±13.3kPa) Low: 300mmHg ±100mmHg (40.7kPa±13.3kPa ) |
| Alarms | Injection soon finishes, end of injection, occlusion, improper installation of the syringe, wrong setting, low battery, syringe loose, etc. |
| Power Source | AC 100V ~ 240V, 50/60Hz; Internal rechargeable Li-battery, capacity≥1,600mAh, 4 hours internal battery backup |
| KVO rate | 1ml/h |
| Fuse | F1AL/250/60V, 2pcs inside |
| Power Consumption | 30VA |
| IP Classification | IPX4 |
| Equipment Classification | Class II, internal power supply, Type CF |
| Operating Condition | Ambient temperature: +5℃~ +40℃ |
| Relative humidity | 20 ~ 90% |
| Transport & Storage Condition | Ambient temperature:-30℃~ +55℃ |
| Relative humidity | ≤95% |
| Dimension | 280mm (L) ×210mm(W) ×130mm(H) |
| Weight | 2.2kg (net weight) |
Country Of Origin- China
Brand – Byond Medical
Brand Warranty – 1 Year
