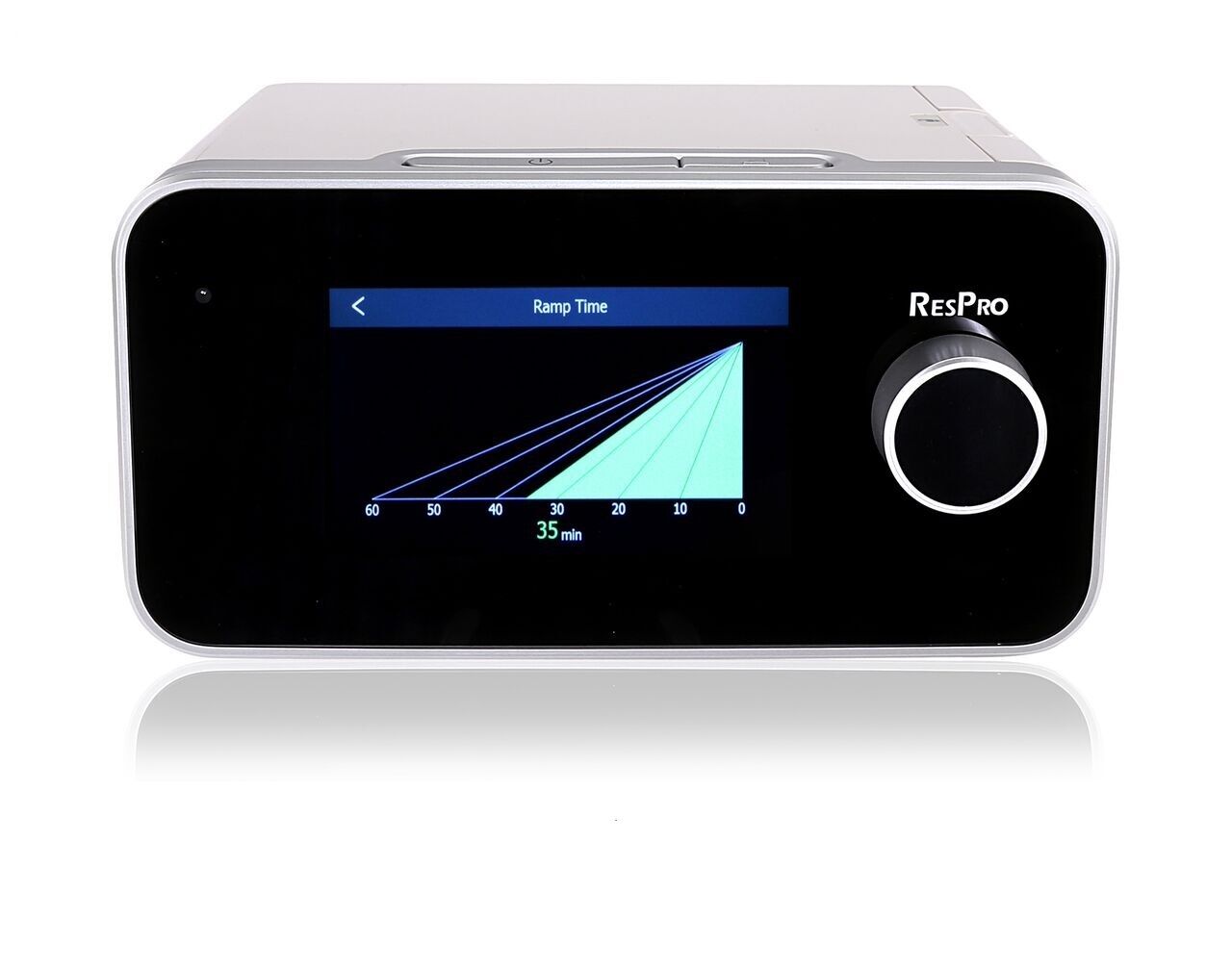

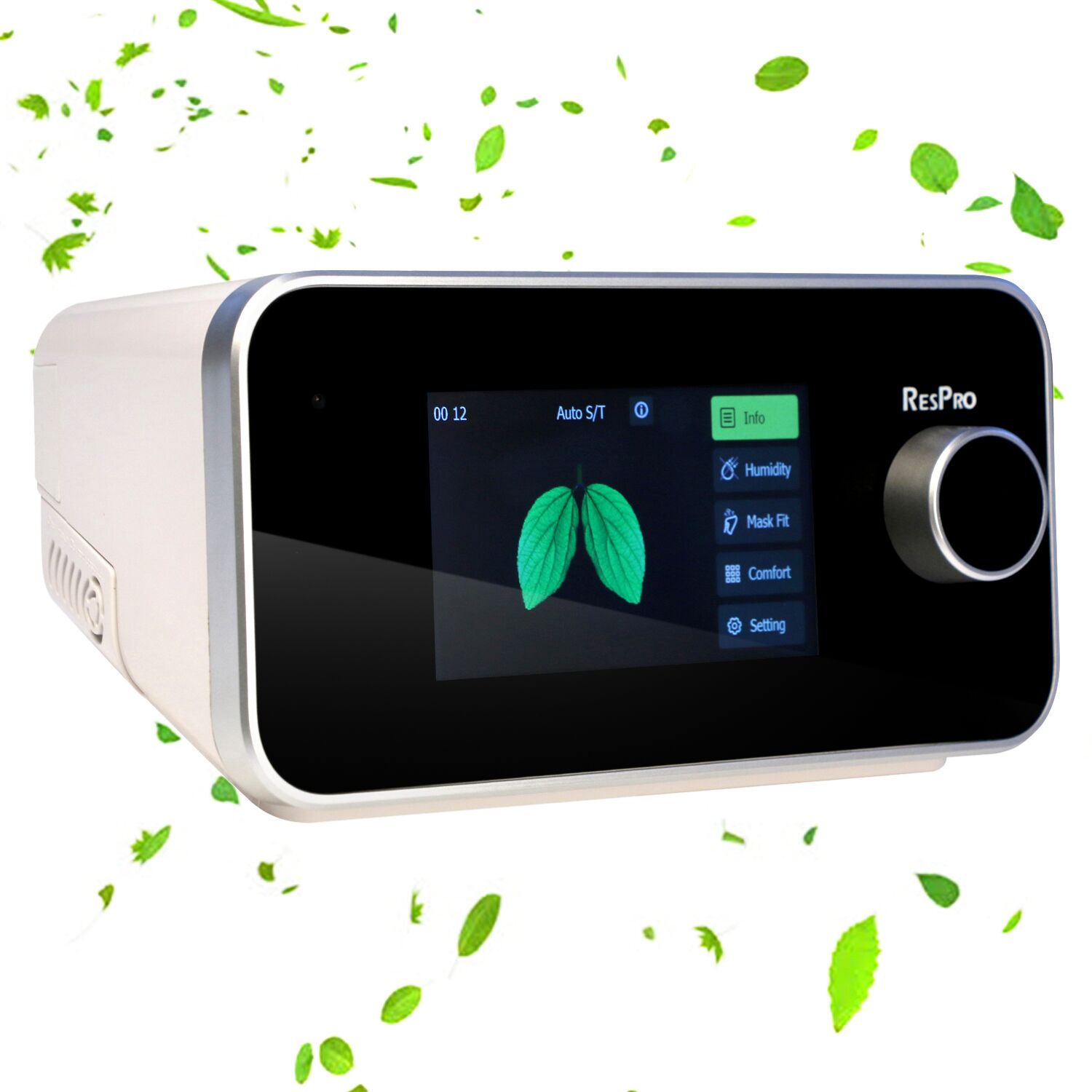

Respro ST Bipap Machine offers a harmonious blend of comfort and efficacy. Its user-friendly interface ensures that both clinicians and patients can navigate its functionalities with ease, while its state-of-the-art algorithms ensure optimal therapy delivery.
Features
- Unique 5 inches touching technology supported with knob navigation eliminate all barriers between seeing and using
- With the help of a timely waveform display function, more respiratory specifics of the patient can be presented to the clinicians
- Advanced ventilation algorithm in synchronization gives the patient a real brilliant experience of free breath
Clinical Specifications
- Modes: CPAP, S, Auto S, T, S/T, Auto S/T (with vaps)
- IPAP pressure: 4-25 cm H2O
- EPAP pressure: 4-25 cm H2O
- EVAPS pressure: 4-25 cm H2O
Static pressure accuracy | 0.5 cmH2O |
Dynamic pressure accuracy | 1 cmH2O |
PS (Pressure support) | 0-10 cmH2O (only for AS800 & ST25A) |
Respiratory rate (Backup frequency) | 0-50 bpm |
Rise Time | Min 150–900 ms |
Inspiratory trigger sensitivity | Auto, 1-5 |
Expiratory trigger sensitivity | Auto, 1-5 |
CSS (Cluster scheme setting) |
Model | 25STA |
Intended Use | OSA / Respiratory insufficiency (only for 25ST) |
User Type | Weight above 30 kg |
Reporting & Data Management
- Data storage in the main unit (1-year statistical data, 1 week high-resolution data)
- SD card high-resolution data storage (10 years)
Comfort Features
- Ramp
- Respiratory event detection
- IPR (Intelligent pressure release)
- Auto ramp
- Auto altitude adjustable

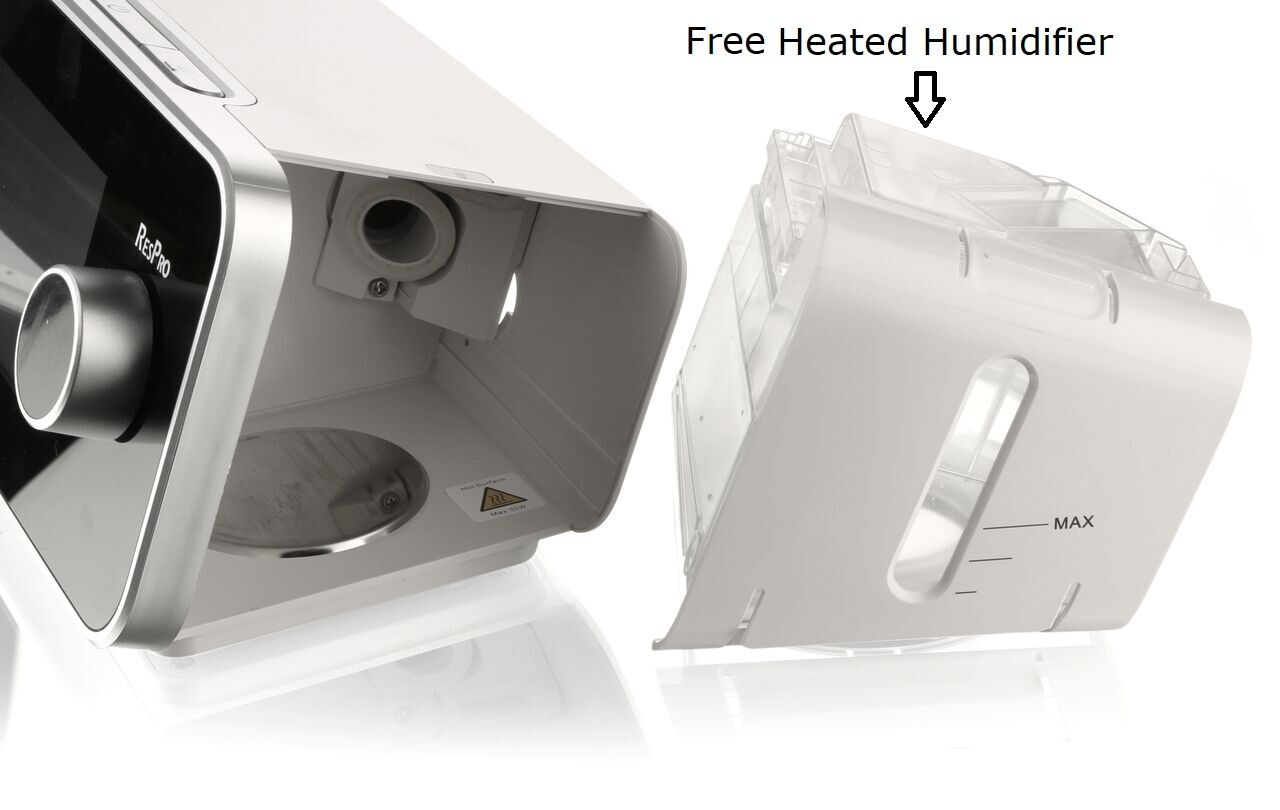

- Integrated Humidification
- Leakage compensation
- Auto on/off
- Mask fit
- Circuit compensation
Weight | 1.35 kg |
Size | 238 x 178 x 128 mm |
Screen | 5 inches, color, touchscreen |
Noise Level (ISO80601-2-70) | ≤ 28 dB |
- Warranty: 3 years

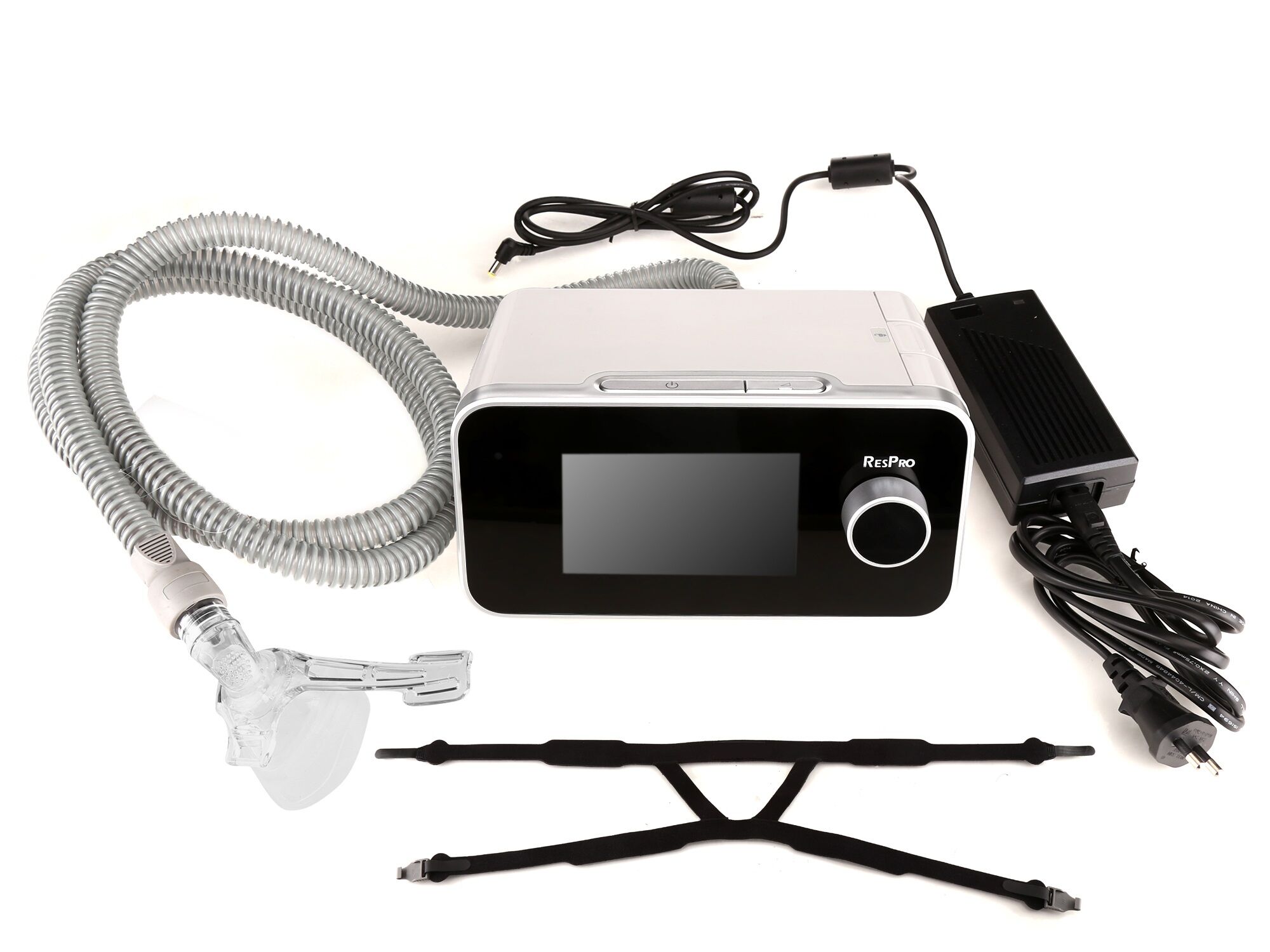

- Includes: Full Face mask, Heated Humidifier, Carry bag, Hose Pipe, Adaptor
