Respro Auto CPAP algorithm can continuously monitor respiratory events, by analyzing the physical status of patients, and guarantee the delivery of the optimality of the level of therapy. An Auto ramp is designed for the patient’s comfort while falling asleep. The system will maintain low pressure for the patient to have an easier start, till the patient falls asleep. Then the standard ramp will be implemented. Leakage compensation, circuit compensation, and altitude compensation delivery the guarantee best accuracy and synchronization
- Modes: CPAP, Automatic CPAP (APAP)
- CPAP Pressure range: 4-20cmH2O
| Model | AC20 |
| Intended Use | OSA |
| User Type | Weight above 30 kg |
| Weight | 1.35 kg |
| Size | 238 x 178 x 128 mm |
| Screen | 3.5 inches, color |
| Noise Level (ISO80601-2-70) | ≤ 28 dB |
Therapy Parameters
- E-COMP*
- R-CARE**
Note:
* E-COMP can help new patients gradually adapt to the prescribed pressure by starting from 50% of the prescribed pressure with a 1 cmH2O increment per day.
**R-CARE allows patients to start from 95% of the therapeutic level accumulated in APAP mode to reduce the incidence of predormitium respiratory events.
| CPAP pressure range | 4-20 cmH2O |
| Static pressure accuracy | 0.5 cmH2O |
| Dynamic pressure accuracy | 1 cmH2O |
| Inspiratory trigger sensitivity | Auto |
| Expiratory trigger sensitivity | Auto |
Comfort Features
- Ramp
- Respiratory event detection
- IPR (Intelligent pressure release)
- Auto ramp
- Auto altitude adjustable
- Leakage compensation
- Auto on/off
- Mask fit
- Circuit compensation
Humidification

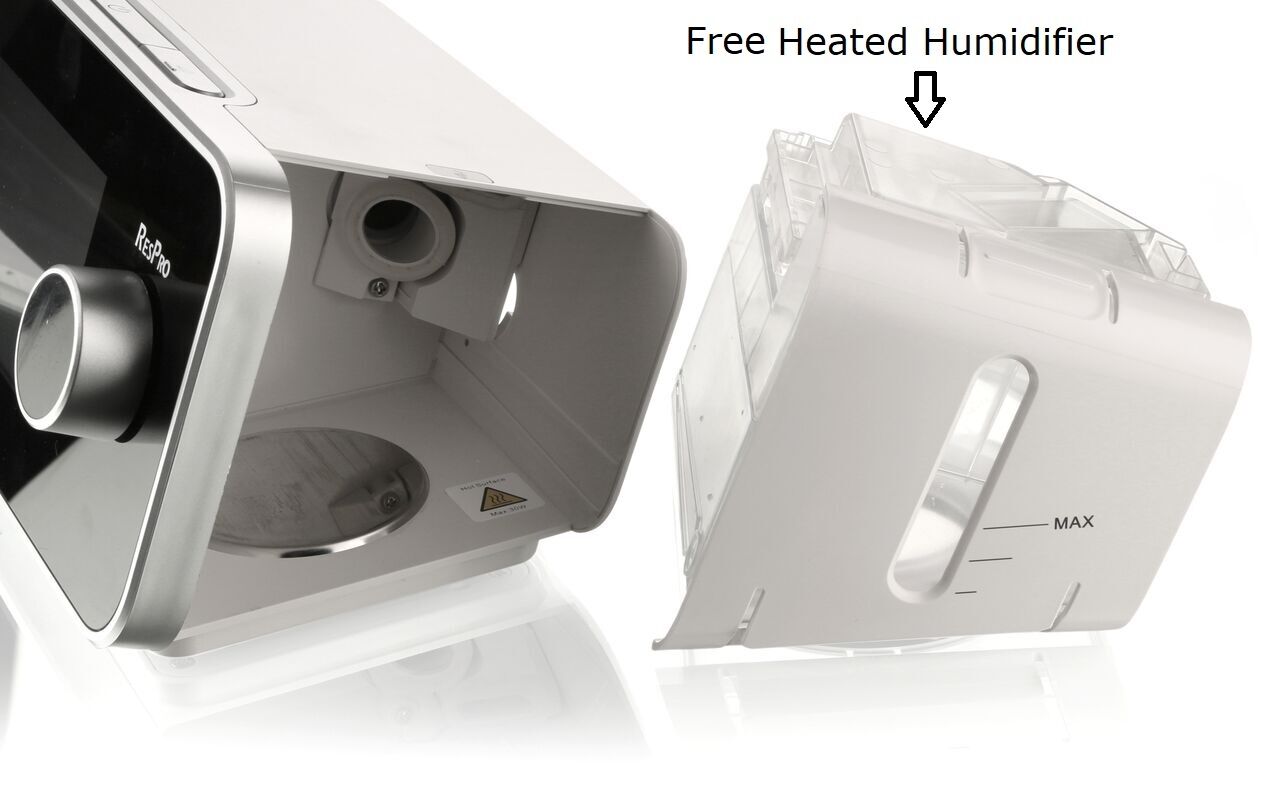

- Integrated humidifier
- Auto humidity
- Preheating
- Heated tube
- Anti-leakage in inclined water tank position
- Water level detection
- Intelligent tube drying
- Data storage in the main unit (1-year statistical data, 1-week high-resolution data)
- SD card high-resolution data storage (10 years)
- Warranty: 3 years

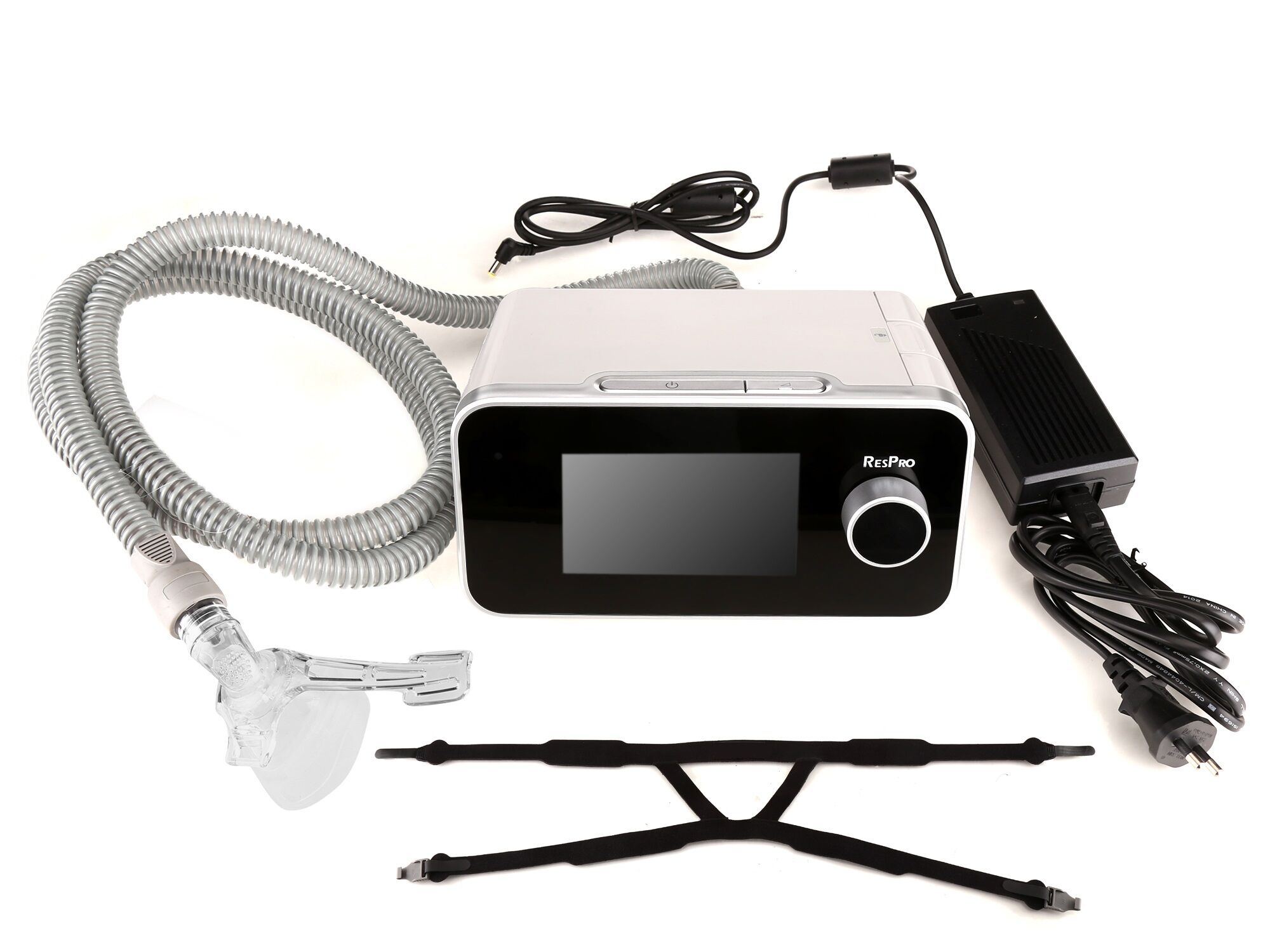

- Includes: Nasal mask, Heated Humidifier, Carry bag, Hose Pipe
