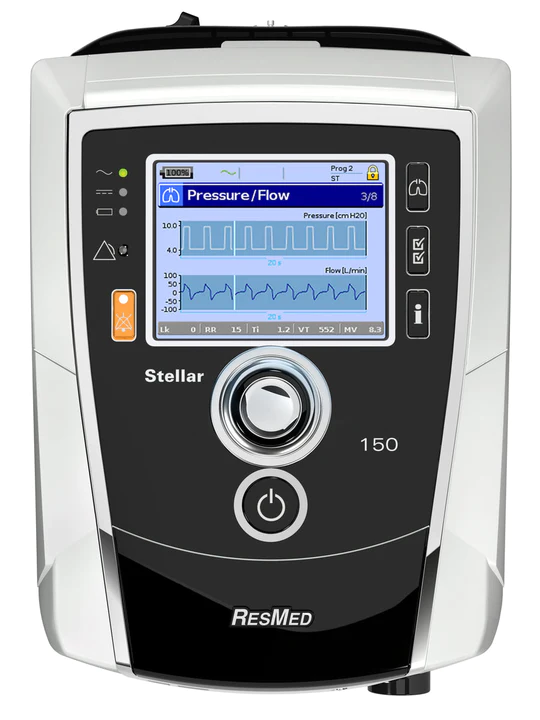

Resmed Stellar 150 is a premium non-invasive ventilator (with invasive capabilities) for patients with changing ventilatory needs or progressive respiratory conditions, including chronic obstructive pulmonary disease (COPD), neuromuscular disease (NMD), and obesity hypoventilation syndrome (OHS). Easy to set up and use, Stellar 150 carefully strikes a balance between providing clinicians with pre-programmed settings that make their job easier, and the opportunity to fine-tune settings when needed to suit each individual patient – a versatile system with its end user in mind. With an intelligent backup rate and optional AutoEPAP feature, iVAPS in Stellar 150 continuously monitors ventilation and the upper airway and automatically adjusts to deliver personalized ventilation that accommodates each patient’s changing needs
Resmed Stellar 150 Features
- iVAPS
- AutoEPAP maintains upper airway patency
- intelligent Backup Rate (iBR)
- Pathology defaults for obstructive, restrictive, obesity hypoventilation, and normal lung mechanics
- Invasive and non-invasive, adult to peadiatric usage
- In-built battery back up upto 2 hours
- 2 customizable pre-set programs
- Vsync
- TiControl
- 5 Trigger and Cycle Senstivities
- Oxygen delivery upto 30 L/min
- A comprehensive range of alarms
- Real-time monitoring and multiple graphs
- Integrated SpO2 and FiO2 monitoring
- Integrated Humidification
Technical Specifications
| Stellar 150 | |
|---|---|
| Modes | iVAPS (intelligent Volume-Assured Pressure Support) with AutoEPAP ST (Spontaneous–Timed) PAC (Pressure Assisted Control) CPAP (Continuous Positive Airway Pressure) S (Spontaneous) T (Timed) |
| Pressure range | IPAP: 2–40 cm H2O EPAP: 2–25 cm H2O |
| TiControl™ | Ti Max 0.3–4 sec Ti Min 0.1–Ti Max |
| Respiratory Rate | 5–60 bpm |
| Rise Time | Min, 150–900 msec (approx.) |
| Trigger and Cycle | Five sensitivity settings |
| Adjustable alarms | High Leak Low Minute Ventilation Low and High Pressure Low and High Respiratory Rate Apnoea Low and High FiO2 Low SpO2 Non-vented mask |
| Standard fixed alarms | Circuit disconnected Over pressure Blocked tube Internal battery empty |
| Dimensions (LxWxH) | 230 x 170 x 120 mm |
| Weight | 2.1 kg |
| Air filter | Electrostatic fibre mesh |
| Air outlet | 22 mm taper, compatible with ISO5356–1:2004 |
| Internal battery | Lithium-ion, 2 hours at EPAP 5, IPAP 15, 20 bpm |
| Power supply | AC 100–240V 50–60Hz, 2.2A AC 110V 400Hz, 2.2A DC 24V/3A |
| IEC 60601–1 Classification | Class II (double insulation) Type BF Continuous operation |
| Data solutions | ResScan EasyCare Tx software and Tx Link |
Brand Warranty – 2 Years
Country Of Origin – Australia
In The Package
- Device
- Power Cable
- Carry Bag
