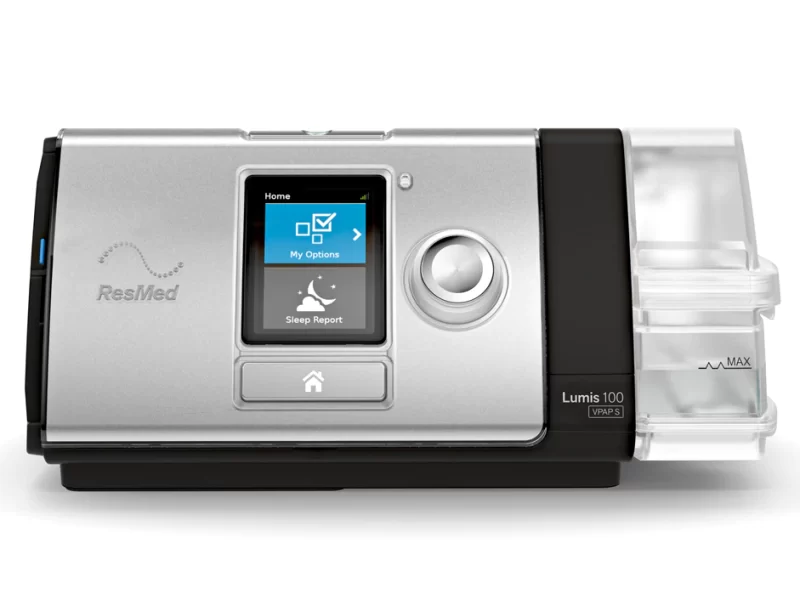

Resmed Lumis 100 VPAP S is a noninvasive ventilator designed for spontaneously breathing, non-dependent patients with respiratory insufficiency.
Resmed Lumis 100 VPAP S Features
- Vsync provides excellent patient–ventilator synchrony, even in the presence of a significant leak.
- TiControl™ lets you set min and max limits on either side of the patient’s ideal inspiratory time to encourage spontaneous breath.
- Trigger and cycle help you optimize settings according to the patient’s condition, using five trigger and cycle sensitivity levels.
- QuickNav for low-touch therapy adjustment. By simply double-clicking the home button on the device, you can toggle between the Settings and Monitoring screens to change and check settings quickly and easily.
- Climate Control Auto for automatic humidification. When used with a HumidAir™ heated humidifier and ClimateLineAir™ heated tube, Lumis delivers humidification automatically – no settings to change and no complicated menus to navigate.
- Ramp and Ramp Down for extra comfort. Lumis offers both Ramp and Ramp Down features to help patients ease into and out of each therapy session.
- ResScan software for advanced clinical insights. ResScan enables you to download your patients’ therapy data, change ventilator settings, and gain insight into their therapy progress across a number of metrics (including AHI, leak, and pressure). High-resolution data (at 25 Hz) is also available for breath-by-breath analysis and even greater insight. Rescan Availability is subject to availability in the region, Please contact support for more on Rescan
Technical Specifications
| Brand | Resmed |
| Model Name/Number | Lumis 100 Vpap S |
| Ventilation Modes | CPAP, S |
| Operating Pressure Range | 3-25 cm H2O(2-25 hPa) S,ST,T mode 4-20 cm H2O(4-20hPa) in CPAP mode |
| Sound Pressure Level | 26.6 dBA with uncertainty of 2 dBA as measured according to(CPAP mode) |
| 90 W Power Supply Unit | Input range:100/240 V,50/60 Hz,57VA |
| Operating Temperature | +5 degrees C o +35 degrees C |
| Storage and Transport Temperature | -20 degrees C to +60 degrees C |
| Housing Construction | Flame retardant engineering thermoplastic |
| Supplemental Oxygen | Recommended maximum flow: 15L/min |
| Standard Air Filter | Polyester non-woven fiber |
| Tubing | Climateline |
| Air Outlet | 22 mm air outlet complies |
Country Of Origin- Australia
Warranty – 3 Years
In The Box:
- Device
- Humidifier Chamber
- Standard Tubing
- Power adaptor and Cable
- SD Card
- Resmed Travel Carry Case
Frequently Asked Questions (FAQ’s)
Q: What is Resmed Lumis 100 Vpap S and how it works?
A: Lumis 100 Vpap S is a Bilevel Positive Airway Pressure machine it can be used in the treatment of sleep apnea and other respiratory insufficiency diseases. It Provides two different pressures Inspiratory pressure and Expiratory pressure that can be customized according to the needs of the patient.
Q: What are the benefits of Using a Resmed Bipap Machine?
A: Resmed Bipap machine provides Positive airway pressure throughout the Night or during the time of therapy which is helpful in keeping the airway open in case of Sleep apnea and is widely used for respiratory insufficiency as well, Please contact your physician to understand what works
Q: How to maintain Resmed Lumis 100 VPAP Machine?
A: In Order to maintain Resmed Lumis 100 S clean the outer surface of the product with a damp cloth regularly, change the filter every six months, and replace consumables Like tubes and masks in a year.
Q: What is the price of the Resmed Lumis 100 VPAP S Machine In India?
A: Resmed Lumis 100 VPAP S Price In India ranges from ₹ 62000 and goes up to ₹ 75000 depending upon the Model and accessories Supplied with the product.
Q: What Modes are available In Resmed Lumis 100 Vpap S Bipap Machine?
A: There are two different operating modes in Lumis 100 S Device CPAP & S. To understand what suits your patient contact your consulting physician.
Q: Where you can buy Resmed Bipap Machine & accessories?
A: Resmed Bipap Machine is Medical Equipment and should be bought from an Authorized Supplier, Resmed devices and accessories can be bought online at Megamed.in.
