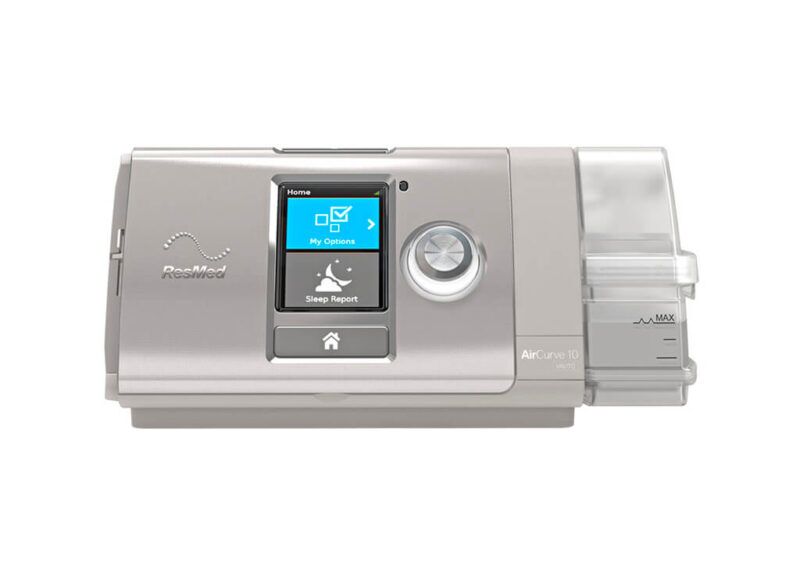

ResMed AirCurve 10 VAuto is an auto-adjusting bilevel machine that uses the comfort of both the AutoSet algorithm and Easy-Breathe waveform in its VAuto algorithm to treat obstructive sleep apnea patients who can benefit from greater pressure support.
The AirCurve 10 VAuto adjusts the baseline pressure to hold the airway open while maintaining fixed pressure support.
Compatible with up to 15 L/min of supplemental oxygen in S and CPAP mode and 4 L/min in VAuto mode.
ResMed AirCurve 10 VAuto Key features
Comfortable. Climate Control automatically delivers therapy at the most comfortable temperature and humidity levels, with no settings to change or complicated menus to navigate.
Dependable. Vsync continuous leak management enables reliable delivery of therapy pressure while maintaining patient–device synchrony.
Easy-Breathe. Easy-Breathe pressure waveform mimics the wave shape of normal breathing and replicates it for your patients’ breathing comfort.
Customizable. TiControl™ lets you set limits on a patient’s ideal inspiratory time to encourage spontaneous breathing.
Adaptable. The AirCurve 10 VAuto is compatible with up to 15 L/min of supplemental oxygen in S and CPAP mode and 4 L/min in VAuto mode.
Remote-ready. Cloud-based AirView™ patient management system lets you access nightly data, troubleshoot, and change device settings remotely.
Technical Specification
| Brand | ResMed |
| Model | AirCurve 10 Vauto |
| Usage/Application | Hospitals & Personal Use |
| Pressure Range (cm H2O) | S, VAuto: 2 to 25 cm H2O (2 to 25 hPa); CPAP: 4 to 20 cm H2O (4 to 20 hPa) |
| Ramp Rate (mins) | 5 to 45 minutes |
Additional Details
| Pressure Sensor | Internally located at device outlet, analogue gauge pressure type, -5 to +45 cm H2O (-5 to +45 hPa) |
| Power Supply Unit | 90 W, AC input range:100–240 V, 50–60 Hz 1.0–1.5 A, Class II 115 V, 400 Hz 1.5 A, Class II (nominal for aircraft use); DC output:24 V 3.75 A |
| Flow Sensor | Internally located at device inlet, digital mass flow type, -70 to +180 L/min |
General System
| Weight With Humidifier | 1248 gm |
| Dimensions | 205 x 150 x 116 mm (without humidifier), 255 x 150 x 116 gm (with humidifier) |
| Warranty | 2 Years |
Comfort Features
| Operating Temperature | +5°C to +35°C Note: The airflow for breathing produced by this therapy device can be higher than the temperature of the room. Under extreme ambient temperature conditions (40°C), the device remains safe. |
| Operating Altitude | Sea level to 2591 m; air pressure range 1013 hPa to 738 hPa |
Sound
| Pressure Level Measured | According to EN ISO 17510-1:2009 (CPAP mode), SlimLine: 26.6 dBA with uncertainty of 2 dBA, Standard: 26.6 dBA with uncertainty of 2 dBA |
| Power Level Measured | According to EN ISO 17510-1:2009 (CPAP mode), SlimLine: 34.6 dBA with uncertainty of 2 dBA, Standard: 34.6 dBA with uncertainty of 2 dBA |
Additional Details
| Operating Mode | S, VAuto, CPAP |
| Housing Construction | Flame-retardant engineering thermoplastic |
| Supplemental Oxygen | Maximum flow: 15 L/min (CPAP, S); 4 L/min (VAuto) |
| Standard Air Filter | Material: Polyester non-woven fibre, Average arrestance: >75% for -7 micron dust |
| Hypoallergenic Air Filter | Material: Acrylic and polypropylene fibres in a polypropylene carrier, Efficiency: >98% for:- 7-8 micron dust; >80% for:- 0.5 micron dust |
| Air Outlet | 22 mm |
| Water Capacity | The device will shut down in the presence of a single fault if the steady state pressure exceeds 30 cm H2O (30 hPa) for more than 6 sec or 40 cm H2O (40 hPa) for more than 1 sec |
| Typical Power Consumption | 53 W (57 VA) |
| Peak Power Consumption | 104 W (108 VA) |
| Wireless Module | Technology used:4G, 2 G. It is recommended that the device be a minimum distance of 2 cm from the body during operation. |
Additional Details
| Design Life | Device, power supply unit – 5 years / Cleanable humidifier – 2.5 years / Air tubing – 6 months |
| Operating Humidity | 10 – 95% relative humidity, non-condensing |
| Storage and Transport Temperature | -20°C to +60°C |
| Storage and Transport Humidity | 5 – 95% relative humidity, non-condensing |
In The Box:
- ResMed AirCurve 10 VAuto Device with HumidAir integrated humidifier
- Water tub
- ClimateLineAir™ Heated Tube
- Power supply unit
- Travel bag
- SD card (already inserted)
Warranty – 2 Years
Country of Origin -Australia
Frequently Asked Questions (FAQ’s)
Q: What is the Price of a ResMed Auto BiPAP machine?
A: ResMed Bipap Auto Machine price Ranges from ₹ 65000 to ₹ 68000, depending upon the Accessories Supplied with the Product.
Q: What Is the Model Name of the ResMed BiPAP Auto Machine?
A: Resmed Bipap Auto Device By Resmed Aircurve 10V Auto. Manufactured in Australia.
Q: What is the Price of the ResMed AirCurve 10V Auto BiPAP machine?
A: The price of ResMed AirCurve 10V Auto Ranges from ₹ 65000- ₹ 6900, depending upon the model and accessories provided with the product.
Q: What Is the Difference between Bipap and Bipap Auto?
A: Manufacturers offer two types of BiPAP machines: fixed-pressure BiPAP and auto BiPAP. In fixed-pressure BiPAP, the physician prescribes exact IPAP and EPAP settings. In auto BiPAP machines, the physician prescribes a range for IPAP based on EPAP and pressure support. Since both devices serve specific purposes, please consult your physician to determine which one suits your needs best.
Q: What are the operating Modes in the ResMed AirCurve Auto BiPAP Machine?
A: ResMed Aircure 10V Auto has three Operational modes: CPAP, S, and Vauto. Please consult your physician to determine the exact mode of operation the patient should use.
Q: What are the accessories supplied with the ResMed AirCurve 10vAuto?
A: Original ResMed AirCurve 10vAuto package contains Device, Humidifier Chamber, Power Adaptor, carry case, and SD Card Installed. The mask is an additional Accessory with this product.
Q: Where can you buy a ResMed BiPAP Machine & accessories?
A: ResMed BIPAP Machine is Medical Equipment and should be bought from an Authorized Supplier. ResMed devices and accessories can be bought online at Megamed.in.
