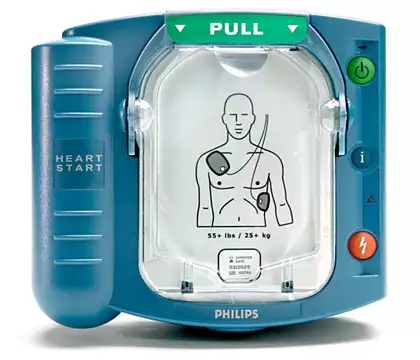

Philips HeartStart HS1 AED

Philips HeartStart HS1 AED Specifications

Battery

Type	9 volt DC, 4.2 Ah, composed of disposable long-life lithium manganese dioxide primary cells
Capacity	Minimum 200 shocks or 4 hours of operating time (EN60601-2-4:2003)
Install-by Date	Battery is labeled with an install-by date of at least five years from date of manufacture
Standby Life	Four years typical when battery is installed by the install-by date. (Will power the AED in standby state within the specified Standby Temperature range, assuming one battery insertion test and no defibrillation uses)

Product Specifications

Kit Contents	Defibrillator, battery (one, pre-installed), SMART Pads (one set, pre-installed), set-up/maintenance guide with expiration date tags, owner’s manual, quick reference guide
Waveform	SMART Truncated exponential biphasic. Waveform parameters adjusted as a function of patient impedance
Defibrillation peak current – Adult	32 A (150 J nominal) into a 50 ohm load
Defibrillation peak current – Pediatric	19 A (50 J nominal) into a 50 ohm load (using optional infant/child SMART Pads Cartridge)
Shock-to-Shock Cycle Time	Typically less than 20 seconds between shocks in a series
Quick Shock	Able to deliver a shock after the end of a CPR interval, typically in eight seconds
Voice Instructions	Detailed voice messages guide responder through use of the defibrillator
CPR Guidance	Instructions for adult and infant/child CPR available at user selection
Shock Delivery	Via adhesive pads placed on patient’s bare skin as illustrated on pads
Controls	Green SMART Pads cartridge handle, green On/Off button, blue i-button, orange Shock button
Indicators	Ready light, blue i-button, caution light

SMART Pads

Energy delivered	Adult: nominal 150 joules into a 50 ohm load; Infant/Child: nominal 50 joules into a 50 ohm load
How Supplied	Disposable cartridge, containing adhesive defibrillation pads, clicks into defibrillator for an integrated pads solution
Active Surface Area	85 cm² (13.2 in²) each
Cable Length	Adult pads: 137 cm (54″); Infant/Child pads: 102 cm (40″)
Use-by Date	Cartridge is labeled with a use-by date of at least two years from date of manufacture
Training pads (optional)	Special pads put HeartStart into training mode and disable its energy delivery capability. Training pads feature 8 real-world training scripts. Use with training mat (included) or with adapters on manikins

Automated and User-activated Self-tests

Daily Automatic Self-tests	Tests internal circuitry, waveform delivery system, pads cartridge, and battery capacity
Pads Integrity Test	Specifically tests readiness-for-use of pads (gel moisture)
Battery Insertion Test	Upon battery insertion, extensive automatic self-tests and user-interactive tests check device readiness
Status Indicator	Blinking green “Ready” light indicates ready for use. Audible “chirp” indicates need for maintenance

Data Recording and Transmission

Infrared	Wireless transmission of event data to a PC or Palm PDA, using the IrDA protocol
Data Stored	First 15 minutes of ECG and the entire incident’s events and analysis decisions

Environmental/Physical Requirements

Sealing	Solid objects per EN60529 class IP2X; Drip-proof per EN60529 class IPX1
Operating Temperature	0 – 50 °C (32 – 122 °F)
Standby Temperature	0 – 43 °C (32 – 109 °F)
Operating Altitude	0 to 4,500 m (0 to 15,000 ft)
Operating Humidity	0 to 95 % relative humidity (non-condensing)
Shock/Drop Abuse Tolerance	Withstands 1 meter drop to any edge, corner, or surface
Vibration	Meets EN1789 random and swept sine, road ambulance specification in operating and standby states
Standby Humidity	0 to 75 % relative humidity (non-condensing)
Standby Altitude	> 48 hours from 0 to 8,500 ft and <48 hours from 8,500 to 15,000 ft
EMI (Radiated/Immunity)	Meets EN55011 Group 1 Level B Class B and EN61000-4-3
