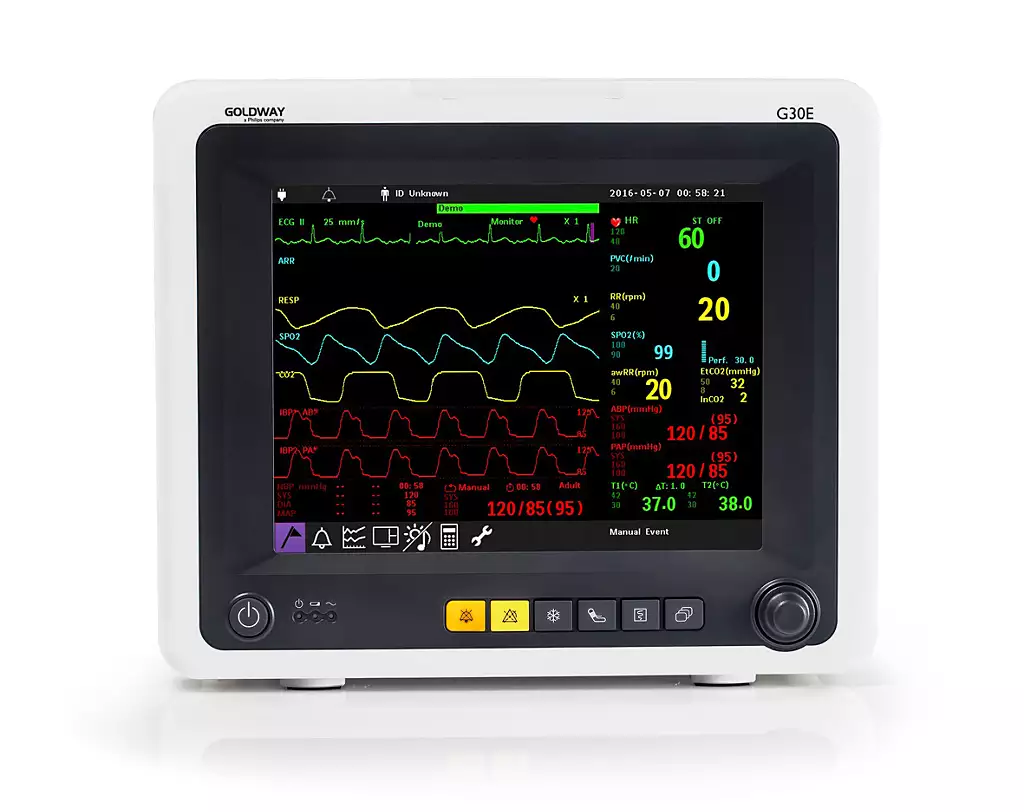

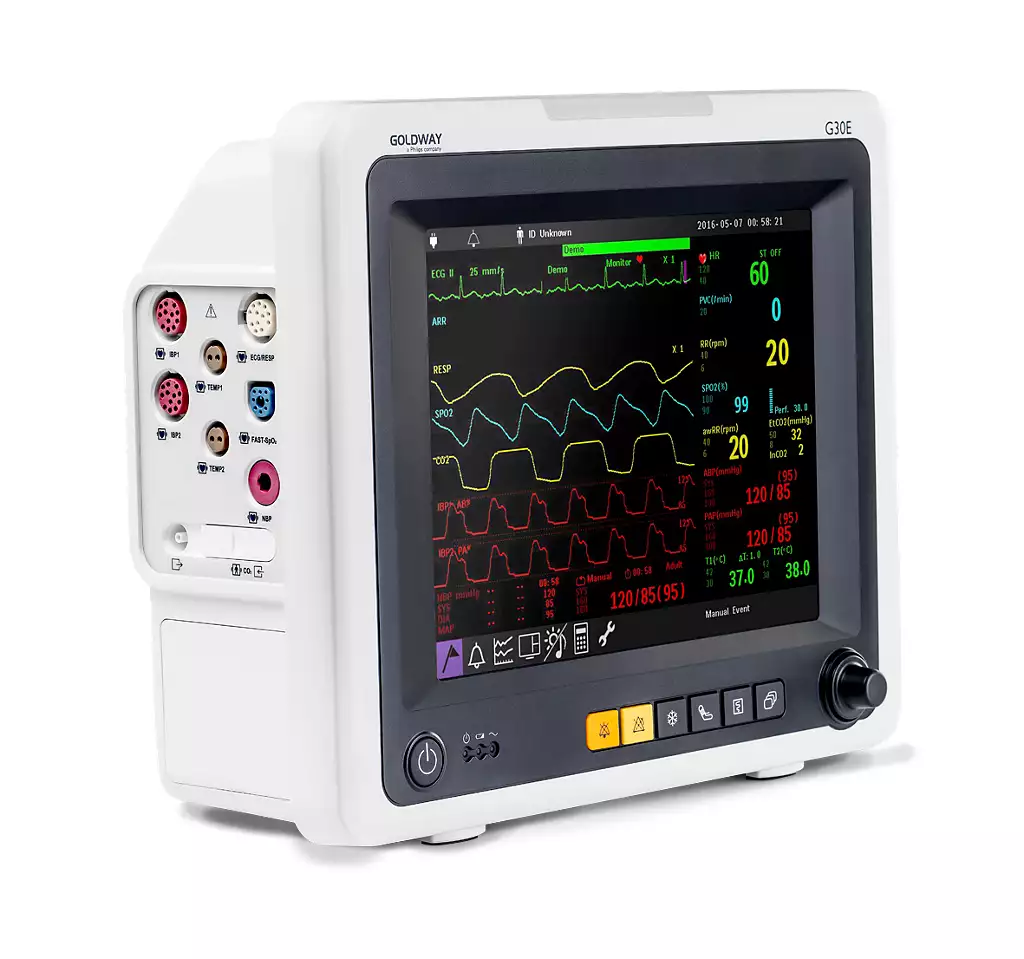

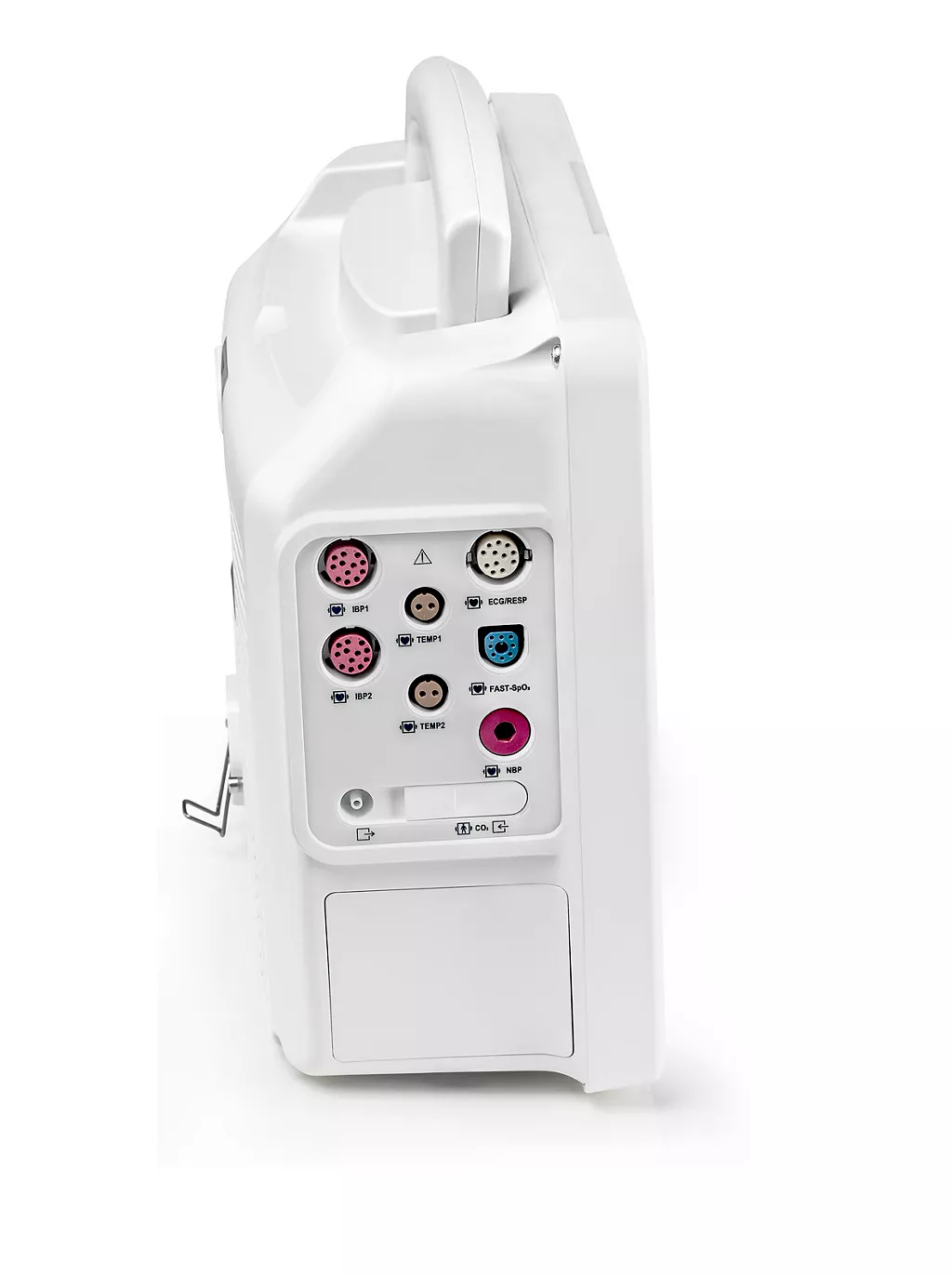

Philips G30E Patient Monitor

Philips G30E Patient Monitor has a 10.4” display with flexible display modes, such as big number display mode, minitrend, OxyCRG, as well as auto waveform channel height adjustment function to fit various clinical settings. Intuitive menus, fixed key access, bright color screen and an optional touchscreen were all designed for maximum ease of use.

Philips G30E Patient Monitor Highlights

Advanced functionalities

To accommodate different clinical environments, the G30E delivers real-time data about cardiac and respiratory conditions. In addition to basic monitoring parameters, such as Philips ST/AR 3- and 5-lead ECG/ RESP, NBP, 2 temperatures, and Philips SpO₂/PR, ST and arrhythmia monitoring, it also provides 2-channel invasive blood pressure and microstream etCO₂ monitoring as options.

Networking and data management

The G30E comes standard with LAN networking capabilities for facilities looking to create a network with a bi-directional communication with Philips Efficia CMS200 central monitoring system or require data output in HL7 format.

Compact and cost-effective

Built according to Philips exacting quality standards, the G30E patient monitor offers market-proven essential parameters in a compact, cost-effective monitor to provide accurate measurement results within your tight budget. The alarm latch function helps reduce alarm fatigue to form a silent care environment.

Works with Efficia consumables

The G30E patient monitor is designed to be compatible with Philips Efficia consumables, which are also used on Philips Efficia CM series bedside patient monitors, to lower your total cost of ownership by sharing Philips consumables across different care settings.

Philips G30E Specifications

• 10.4” (G30E) color TFT LED display
• Up to 11 waveform displays with auto channel height adjustment
• Philips FAST SpO₂ with anti-motion & low perfusion performance
• 23 arrhythmia and ST segment analysis via Philips ST/AR algorithm
• Optional modules:
  • Dual-channel IBP
  • etCO₂
  • Touchscreen
  • Thermal dilution cardiac output (G40E only)
• OxyCRG / dynamic trend display
• Bed-to-bed overview (no central system needed)
• LAN connectivity to Efficia CMS200 system
• Standard HL7 output
• Compatible with Philips supplies
• Li-ion battery with up to 2.5 hours monitoring
• Neonate to adult application
• 4 user-defined profiles for clinical efficiency

📊 Monitoring Parameters

• ECG: 3/5-lead; 15–350 bpm; 23 arrhythmias; pacemaker detection
• NBP: Oscillometric; SYS/DIA/MAP; manual/auto/stat modes
• SpO₂: 0–100% range; ±2% accuracy (70–100%)
• RESP: Thoracic impedance; 0–150 rpm; apnea alarms
• TEMP: 0–50˚C; ±0.1˚C accuracy; dual channel
• etCO₂ (optional): Microstream; 0–99 mmHg; ±2 mmHg accuracy
• IBP (optional): SYS/DIA/MAP; -50 to 400 mmHg; ±4 mmHg

🖥️ Display and Interface

• TFT LCD, 800×600 px
• Real-time, timed, and alarm-based thermal recording (optional)
• Interfaces: VGA, LAN, USB, nurse call, ECG analog out

🔌 Power & Physical Specs

• AC: 100–240V, 50/60Hz
• Battery: 4800mAh Li-ion
• Weight: G30E ~4.0 kg;
• Size: 316 x 265 x 131 mm

🧾 Data Management

• 1600 NBP sets, 1200-hour trend, 120-min ECG review
• 200 alarm + 200 arrhythmia events storage

🌡️ Environmental Conditions

• Operating Temp: 5–40˚C
• Humidity: 15–85%, non-condensing
• Barometric Pressure: 70–106 kPa

Brand – Philips

Brand Warranty – 1 Year
