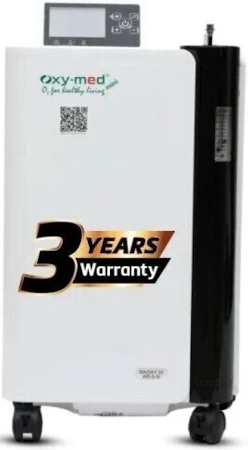

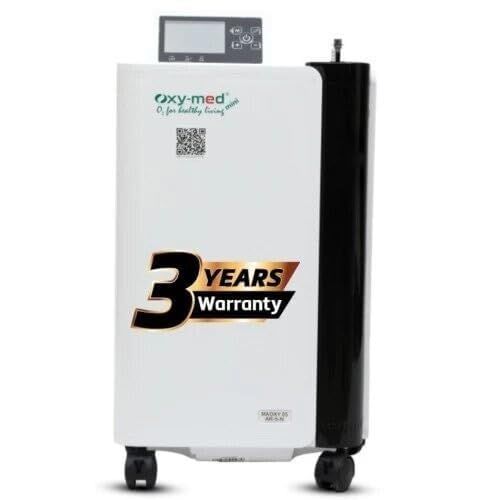

Oxymed Mini Oxygen Concentrator 5 LPM is very useful for those needing oxygen regular basis at home. Get Extra Primary and Secondary filters Free with every Oxygen Concentrator another feature it has Inbuild Nebulizer Option. It can give a maximum of 5LPM of oxygen flow. It is the first choice for oxygen therapy at home because of its lightweight and compact size as compared to all other oxygen concentrators available on the market. It is not a Portable oxygen concentrator but a small-size oxygen Concentrator machine for home use.
Oxymed Mini Oxygen Concentrator Features
| Brand | Oxymed |
| Model Name/Number | MAOXY05/ (AR-5-N) |
| Flow Rate | 5 LPM |
| Oxygen Concentration | 93% |
| Warranty | 3 Years |
| Sound Level | <40db |
| Weight (in kg) | 15kg |
| Outlet Pressure | 40-70KPa |
| Power Consumption | 390VA |
•Usage/Application – Home Operation Electrical
•Filters – Compressor Intake
•Weight – 19 kg
•Oxygen Concentration – 93% (+3%,-3%)
•Alarm Type – DIGITAL Average
•Power Consumption – 360W
•Operation Mode – Portable
•Color – WHITE Material WHITE
•Features – 5 LPM
•Power – 220
•Sound Level- Less than or equal to 50dB(A)
•Voltage AC – 220V

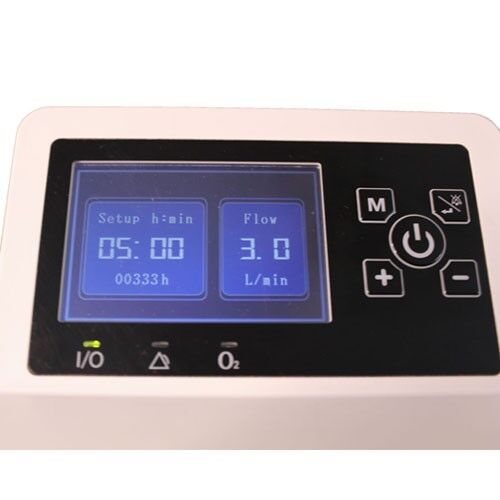

•Display Type – LCD
•Frequency -50Hz
•Oxygen Flow – 5LPM
•Accuracy – 96
•Flow Rate – 5 LPM liters per minute
•Diameter – 120
•Number Of Wheels – 4
•Pressure – 7 Size 10
•Temperature -25
•Oem Service – Yes
•Dimensions – 34 cm x 30 cm x 65 cm (W x D x H)
•Flow – 1 LPM-5 LPM
•Power Consumption – 350 Watts
•Operating Conditions – 5 Degree C to 55 Degree C
•Storage Temperature – -20 Degree C to 60 Degree C
•Relative Humidity – 80% RH

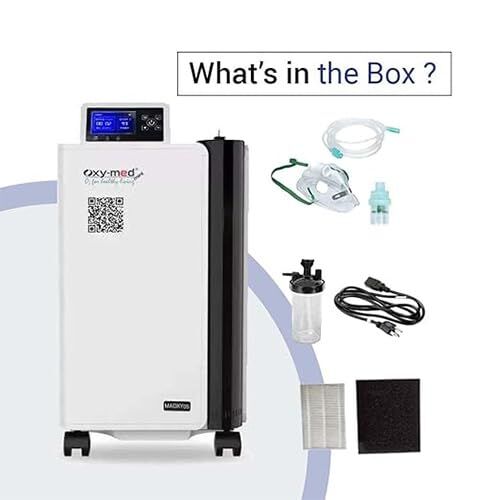

CONTENT OF BOX

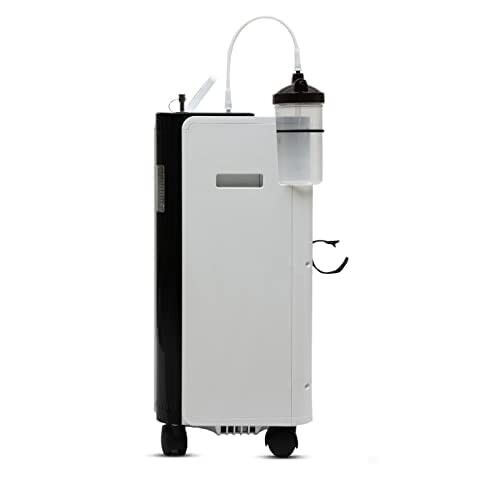

• Built-in humidifier bottle
•Power cord
•User manual
Frequently Asked Questions (FAQ’s)
Q: What is Oxymed Mini Concentrator?
A: Oxymed Mini concentrator is a medical equipment that is used to provide supplemental oxygen to patients with respiratory diseases, it is a compact oxygen concentrator machine giving oxygen flow from 0.5 to 5 LPM. This product is ideal to be used in home and clinical settings.
Q: How Does Oxymed Mini Concentrator Work?
A: Oxymed Mini Concentrator takes air from the environment and removes nitrogen and other gases by using a molecular sieve. Oxymed Mini Concentrator concentrator delivers concentrated oxygen 93% +-3% at all times via oxygen Mask or nasal cannula to the patient and has a low purity alarm in case oxygen purity goes below 80%, it also has Digital Oxygen purity Indicator.
Q: Who Can use Oxymed Mini Concentrator?
A: Oxygen concentrator is suitable for patients who have respiratory diseases and require supplemental oxygen, Some examples are, Asthma, COPD (Chronic Obstructive Pulmonary Disease), ILD (Interstitial lung disease), and many other respiratory illnesses. It is important to note that you should consult with your physician before taking any therapy.
Q: How Do I maintain Oxymed Mini Concentrator?
A: Oxymed Oxygen concentrator is compact, accurate to delivery, and easy to use and maintain, Still users should clean the outer unit every 15 days and the Oxymed Mini Air inlet filter should be replaced every 2500 Hours of use to ensure trouble-free operations. Humidifier Bottle for the Oxygen concentrator should be changed every 3 Months and the Nasal cannula should be replaced in 20-25 days.
Q: What is the Price Of Oxymed Mini Oxygen concentrator in India?
A: Oxymed Mini Oxygen concentrator Prices in India Range from ₹ 38,000 goes up to ₹ 51000 depending upon the Market and availability. The maximum retail price of the Nidek Oxymed Mini Oxygen Concentrator set by the manufacturer is ₹ 58000.
Q: What is the Country of Origin for Oxymed Mini?
A: Oxymed Mini is Manufactured in China by Aertis and Imported & Marketed by Oxymed.
Q: What is the Life of an Oxymed Mini Concentrator?
A: Oxymed Mini is designed for Long and durable life, Usual life of this Oxygen concentrator is around 3-4 Years, Sieve Can last up to 13000 Hours.
Q: What is the warranty of the Oxymed Mini Concentrator?
A: Warranty Of the Oxymed Mini Concentrator is 3 Years and it can be availed through Oxymed Authorised service centers across India. Oxymed also provides an onsite warranty in Most of the Metro cities contact support to know more
Q: How Long you can use Oxygen Concentrator Continuously?
A: Yes, A Medical grade oxygen concentrator can be used continuously for 4-5 Hours and then give a break of 15-20 Minutes to avoid overheating, you can use this concentrator in this cycle according to your requirement.
Q: Does Oxymed Mini Come with Battery Backup?
A: No, Oxymed Mini is a stationary home concentrator that has to be connected to a power source all the time, medical has one model for Battery operated oxygen concentrators like Oxymed P2 Portable Oxygen Concentrator.
Q: What is the pressure output of Oxymed Mini?
A: The pressure output of Oxymed Mini is 6 Psi which is perfect for patients who need high-Pressure oxygen.
