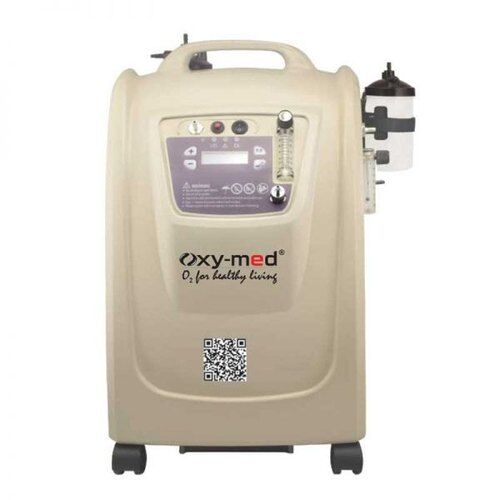

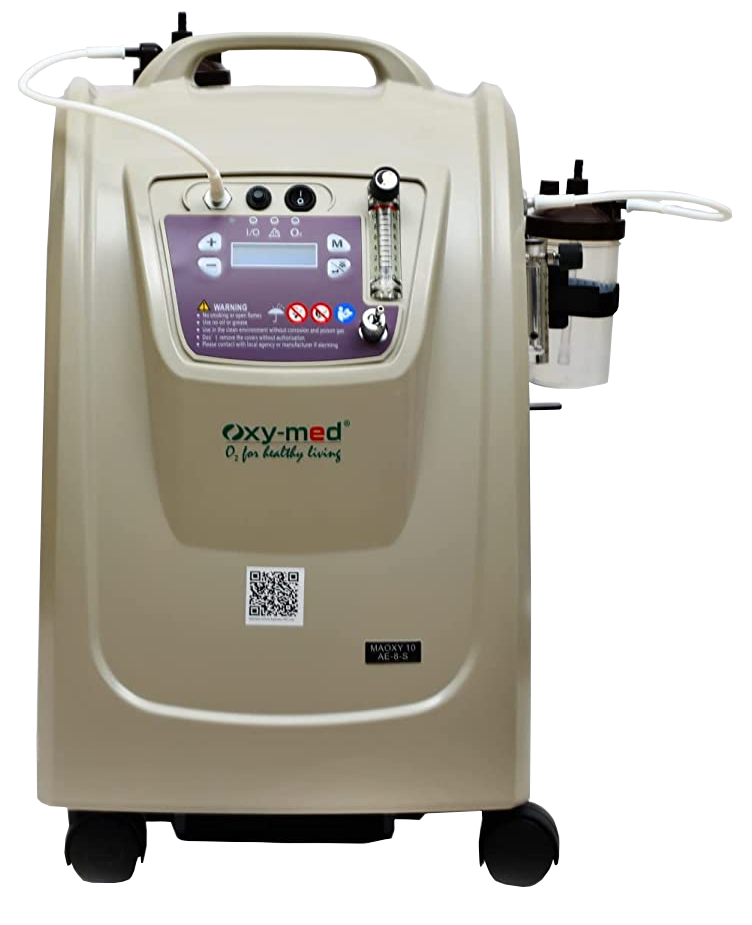

Oxymed Oxygen Concentrator is one of the most successful brands in the Indian market with over 40 service centers and home installation services in almost 50 cities across the country. Its high-flow oxygen concentrator, Oxymed 10 LPM supplies oxygen at the flow rate of 1-10 LPM at an oxygen purity of 90-96% at all flow levels.
- Product Code: MAOXY10 / (AE-8-S)
- Flow rate 1-10 LPM, with an increment of 0.5 LPM
- High / Low voltage Alarm Sensors
- PSA (Pressure Swing Adsorption) Technology
- Inbuilt Nebulizer and Timer (10 MIN to 5 HOURS)
- Alarms for Low Oxygen purity, Low pressure, Power Outage, and defective information is displayed on the screen
- HEPA filter and Bacteria filter from Italy. Five-stage filters keep away most impurities, bacteria, and PM (particulate matter) 2.5 microns.
- Easy to store, transport, and deliver
- Oxygen Purity : 93%(+3%,-3%)
- Dual bottle with dual Flow Meter
- Mechanical flow regulator with an interval of 0.5L/MIN.
- Big displacement compressor ensures 30% longer life span, suitable for 24 hours continue running with, service Interval Indicator
- Noise reduction technology < 50db
- Re-settable Circuit breaker
- PAN India Service Network
- When the oxygen concentration is <90%, the oxygen concentrator’s alarm will trigger.*
- When oxygen concentration fault conditions (overheat alarm, power outage alarm), oxygen concentration stops running, the output of oxygen flow rate is 0L/min*
Oxymed 10 LPM Oxygen Concentrator Specifications
Weight: Oxymed 10 LPM weighs 24 kg.
Sound: The machine emits sound at 50 dB.
Outlet Pressure: The machine gives outlet pressure at 14.5 psi.
Power Consumption: Oxymed 10 LPM uses 610 watts of power.
Alarms: Loss of power, system malfunction
Certifications and Approvals: Oxymed 10 LPM is CE certified.
| Flow rate | 1-10L/MIN |
| Concentration | 90-96% |
| Power | 610W |
| Sound Level | <50db |
| Outlet Pressure | 100KPa+10% or 14.5 psi |
| Net Weight | 24 kg |
| Gross Weight | 26 kg |
| Warranty | 2 year |
Country Of Origin – China

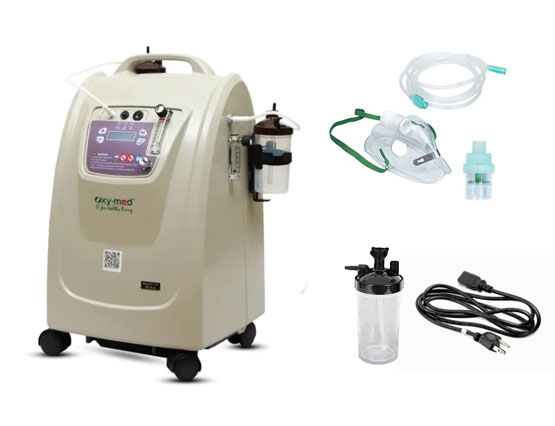

In The Box
- Oxygen Concentrator
- Humidifier Bottle
- Nasal Cannula
- User Manual
Frequently Asked Questions (FAQ’s)
Q: What is Oxymed 10 LPM Concentrator?
A: Oxymed 10 LPM Oxygen concentrator is a medical equipment that is used to provide supplemental oxygen to patients with respiratory diseases, it is a compact oxygen concentrator machine giving oxygen flow from 0.5 to 10 LPM. This product is ideal to be used in home and clinical settings.
Q: How Does Oxymed 10 LPM Concentrator Work?
A: Oxymed 10 LPM Concentrator takes air from the environment and removes nitrogen and other gases by using a molecular sieve. Oxymed 10 LPM Concentrator concentrator delivers concentrated oxygen 93% +-3% at all times via oxygen Mask or nasal cannula to the patient and has a low purity alarm in case oxygen purity goes below 80%, it also has Digital Oxygen purity Indicator.
Q: Who Can use Oxymed 10 Oxygen Concentrator?
A: Oxygen concentrator is suitable for patients who have respiratory diseases and require supplemental oxygen, Some examples are, Asthma, COPD (Chronic Obstructive Pulmonary Disease), ILD (Interstitial lung disease), and many other respiratory illnesses. It is important to note that you should consult with your physician before taking any therapy.
Q: How Do I maintain the Oxymed 10 Oxygen Concentrator?
A: Oxymed Oxygen concentrator is compact, accurate to delivery, and easy to use and maintain, Still users should clean the outer unit every 15 days and the Oxymed 10 LPM Air inlet filter should be replaced every 2500 Hours of use to ensure trouble-free operations. Humidifier Bottle for the Oxygen concentrator should be changed every 3 Months and the Nasal cannula should be replaced in 20-25 days.
Q: What is the Price Of an Oxymed 10 LPM Oxygen concentrator in India?
A: Oxymed 10 LPM Oxygen concentrator Prices in India Range from ₹ 38,000 goes up to ₹ 51000 depending upon the Market and availability. The maximum retail price of the Nidek Oxymed 10 LPM Oxygen Concentrator set by the manufacturer is ₹ 58000.
Q: What is the Country of Origin for Oxymed 10 LPM?
A: Oxymed 10 LPM is Manufactured in China by Aertis and Imported & Marketed by Nidek Medical India.
Q: What is the Life of an Oxymed 10 Oxygen Concentrator?
A: Oxymed 10 is designed for Long and durable life, Usual life of this Oxygen concentrator is around 3-4 Years, Sieve Can last up to 13000 Hours.
Q: What is the warranty of the Oxymed 10 Oxygen Concentrator?
A: Warranty Of Oxymed 10 Oxygen Concentrator is 2 Years and it can be availed through Oxymed Authorised service center across India. Oxymed also provides an onsite warranty in Most of the Metro cities contact support to know more
Q: How Long you can use Oxygen Concentrator Continuously?
A: Yes, A Medical grade oxygen concentrator can be used continuously for 4-5 Hours and then give a break of 15-20 Minutes to avoid overheating, you can use this concentrator in this cycle according to your requirement.
Q: Does Oxymed 10 LPM Come with Battery Backup?
A: No, Oxymed 10 LPM is a stationary home concentrator that has to be connected to a power source all the time, medical has one model for Battery operated oxygen concentrators like Oxymed P2 Portable Oxygen Concentrator.
Q: What is the pressure output of Nidek Oxymed 10 LPM?
A: The pressure output of Oxymed 10 LPM is 12 Psi which is perfect for patients who need high-Pressure oxygen.
