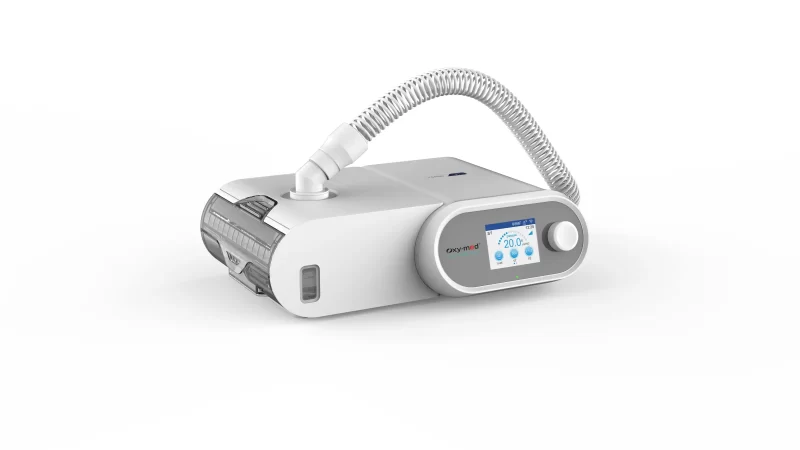

Oxymed Airsmart ST BiPAP has helped thousands of patients sleep better, feel better, and live better lives. These quiet, easy-to-use, travel-friendly devices, combined with Oxymed’s well-fitted Nasal Mask, help deal with Sleep Apnea for a good night’s sleep and a happy, healthy, and energetic life.
Doctors use the Oxymed BiPAP machine to treat various respiratory conditions like asthma, COPD, and sleep apnea. Please refer to your Physician for Clinical Guidance
Oxymed Bipap ST Technical Specifications
| Model Name | Oxymed Bipap |
| Model no | Airsmart ST |
| Modes | CPAP, S mode, T mode, S/T mode, VAPS mode, and PC mode |
| Pressure Range | IPAP-4-25cm H2O |
| Pressure Range | EPAP-2-25cm H2O |
| Pressure accuracy | +/-0.2cm H2O |
| Respiratory rate | 0-30 BPM |
| Tidal Volume | 200-1500 ml |
| Ramp Time | 0-45 mins (5-minute increments) |
| I:E Ratio | 1:4 |
| Max Operation Pressure | 30cm |
| Humidification Level | 1-5 levels (113 to 185 ° F/23 to 85 °C) |
| Rise Time | 1-6 levels |
| Data storage capacity | 16GB USB disk |
| Weight | 1 . 1 Kg without a humidifier, 1 . 9 Kg with a humidifier |
| Mean Sound Level | < 30 dB |
| Mask | Full Face Mask |
| Leak Compensation | 60LPM |
| Peak Flow | 180LPM |
| Alarms | High Pressure, Low MV, Low TV & Leak |
| Data management | Yes (1 day, 7 days, and 30 days) of detailed data stored in the device |
Country Of Origin – China
Warranty – 3 Years
In The Box
- Device
- Humidifier
- Mask (Optional)
- Tubing
- Carry Case
- Power Adaptor
Frequently Asked Questions (FAQ’s)
Q: What is Oxymed Airsmart ST BiPAP, and how does it work?
A: The Oxymed Airsmart ST BiPAP delivers bilevel positive airway pressure with a backup rate and volume-assured support. Doctors use it to treat sleep apnea and other respiratory insufficiency conditions.”It provides two different pressures, Inspiratory pressure and Expiratory pressure, & Volume assured support with a Backup rate that can be customized according to the needs of the patient.
Q: What are the benefits of using an Oxymed BiPAP machine?
A: The Oxymed Airsmart BiPAP machine delivers positive airway pressure throughout the night or during therapy, helping keep the airway open in cases of sleep apnea and widely supporting patients with respiratory insufficiencyPlease contact your physician to understand what works best for your patient.
Q: How to maintain the Oxymed Airsmart ST BiPAP Machine?
A: To maintain Oxymed Bipap, clean the outer surface of the product with a damp cloth regularly, change the filter every six months, and replace consumables like tubes and masks in a year.
Q: What is the Oxymed Bipap Machine’s price in India?
A: Oxymed Bipap Price In India ranges from ₹ 47000 and goes up to ₹ 55,000, depending upon the Model and accessories supplied with the product.
Q: What Modes are available in the Oxymed Airsmart BiPAP machine?
A: Oxymed Airsmart Bipap ST Devices have six different operating modes: CPAP, S, T, ST, PAC, and VAT. To understand what suits your patient, contact your consulting physician.
Q: What is the Country of Origin Of the Oxymed BiPAP machine?
A: The Oxymed Airsmart BiPAP Machine is manufactured in China.
Q: Where can you buy the Oxymed Bipap Machine & accessories?
Buy the Oxymed BiPAP ST machine only from an authorized supplier, as it is medical equipment. You can purchase Oxymed products and accessories online at Megamed.in.
