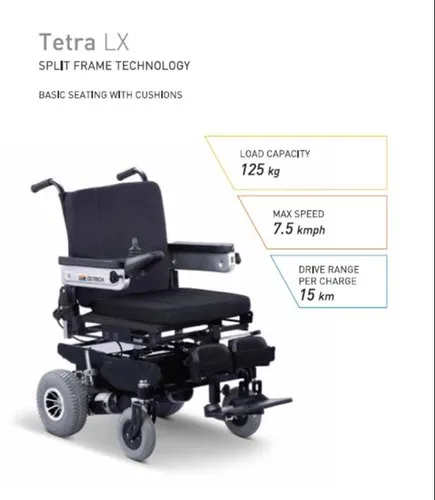

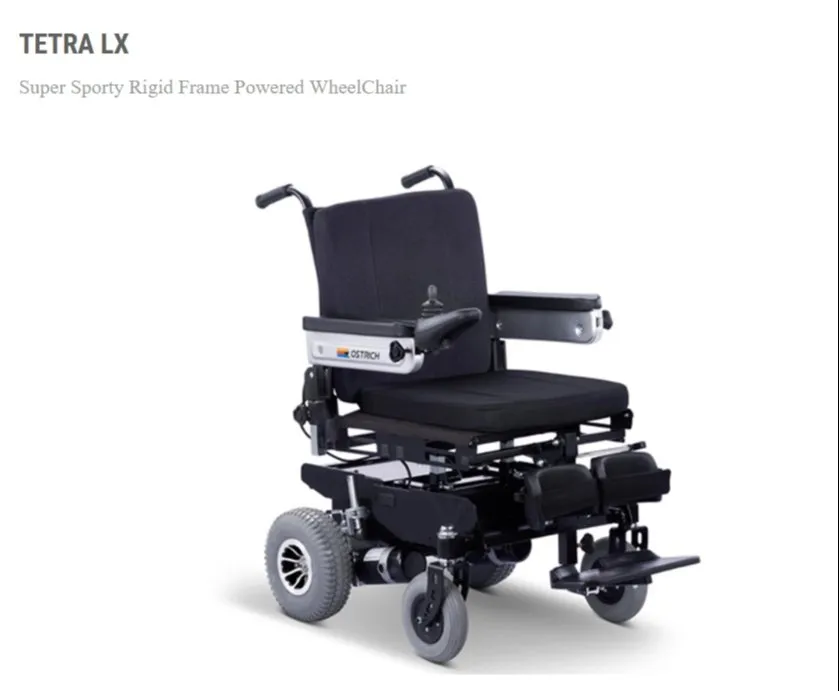

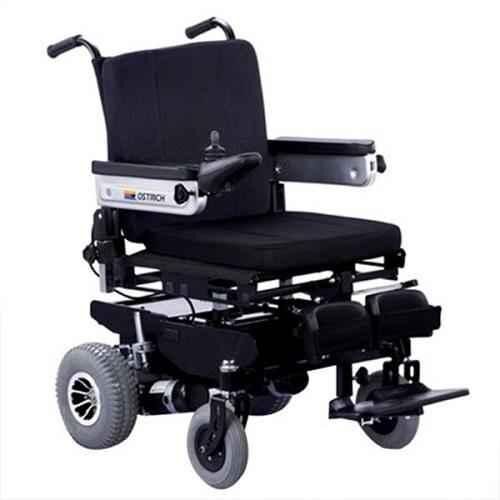

Ostrich Tetra LX Electric Wheelchair is the most cost-effective and attractive powered wheelchair with revolutionary Split Frame Chassis (SFC). This mobility equipment provides the most economic indoor and all-terrain mobility. Portability is enhanced by the removable seat design.
Specification
Technical Specification
- Load capacity: 130 kg /286 lbs
- Speed* :8 km/H max
- Speed selection: 5 speeds
Features
- Split Frame Chassis (SFC)
- Urine bag holder
- Manual seat height adjustment up to 4 inches
- Call Alarm
- Fault alarm
- Reverse alarm (on request)
- Low voltage alarm
- Key padlocking
- Mobility cut-off while charging
- Auto shut-off after 3 minutes
- Five-speed selector
- Length adjustable joystick control unit(can be changed from left to right and vice versa)
- Foldable, height-adjustable, and angle-adjustable footrests
- Wide armrest with height and width adjustment
- Basic seat
- Removable seat backrest
- Removable and width-adjustable calf support
- Reflectors as per standards
- One-year replaceable warranty against manufacturing defects
Motor
- Power: 200 – 220W
- Motor speed: 4200-4700 RPM
- Gear ratio: 32:1
- Brake: Electromagnetic
- PermissibleGradeability: 12 0
- Drive Range**: 12-15 Km / Charge
Tyre & Battery
Tire (Puncture free foam-filled rubber tires)
Front– Tire diameter X Tire Width:: 190 mm X50 mm /7.48 “ X2”
Rear– Tire diameter X Tire Width: 260 mm X80mm /10.23” X3.14”
Anti tippers– 32mm/1.2” solid
Battery: 24 Volt 24 Ah Sealed Maintenance Free VRLA
Charger: Input-230/240 Volts AC Single phase, Output-24 Volts-5 Amps DC
Dimensions
- Overall length with footrest and tipper wheel (at 90 degrees): 1020mm/40.05”
- Overall width: 580mm/22.82”
- Overall height: 970mm /38.19”
- Overall height after folding the seat: 710mm /27.95”
- Overall weight: 74 Kg/163 lbs
- Ground clearance: 75mm/3”
- Turn circle radius:880mm/34.64”
Seat
- Seat depth: 420mm /16.53”
- Seat width: 400mm/15.74”
- Backrest height: 400mm /15.74”
- Backrest width: 400mm 15.74”
- Seat base height from the ground: 500mm/19.68”
- Manual seat height adjustment up to 75mm /3”
- Frame height when seat removed: 350mm/13.77”
Arm Rest
- Width: 50mm/2”
- Length:360mm/14.17”
- Height adjustment:180mm/7”
- Width adjustment: yes
Foot Rest
- Length: 190mm /7.48”
- Width: 340mm/13.38”
- Length adjustment: 100mm/4”
- Angle adjustment: Up to 90 degrees
