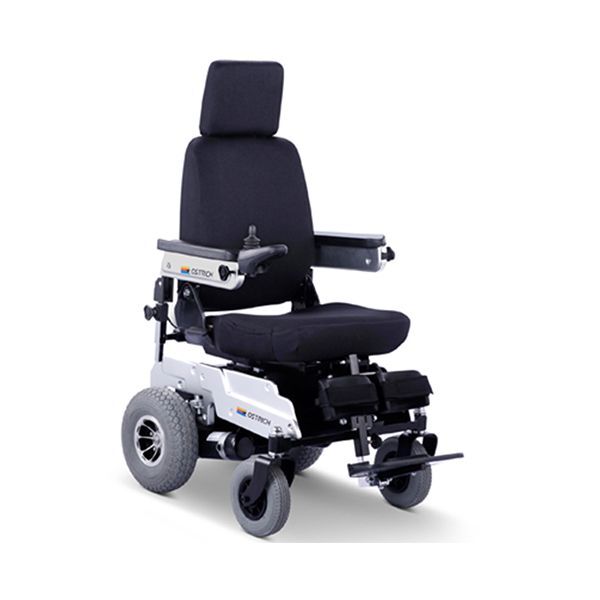

Ostrich Tetra EXi Electric Wheelchair is a sleek and smart new-generation powered wheelchair with revolutionary Split Frame Chassis (SFC) from Ostrich Mobility that makes your personal mobility looks easier and more elegant. This indoor/outdoor mobility equipment provides excellent maneuverability, great comfort, and stability. The body panels give unmatched looks and style for your mobility. The seat can be removed with minimum effort which eases the portability.
Ostrich Tetra EXi Electric Wheelchair Technical Specification
- Load capacity: 130 Kg /286lbs
- Speed*:9 km/H max
- Speed selection: 5 speeds
Features
- Split Frame Chassis (SFC)
- Urine bag holder
- Manual seat height adjustment up to 3 inches
- Call alarm
- Fault alarm
- Reverse alarm (on request)
- Low voltage alarm
- Key padlocking
- Mobility cut-off while charging
- Auto shut-off after 3 minutes
- Five-speed selector
- Length adjustable joystick control unit (can be changed from left to right and vice versa)
- Foldable, height-adjustable and angle-adjustable footrest
- Wide armrest with height and width adjustment
- Bucket seat with a three-point belt
- The seat can be folded for transportation
- The seat reclines 30 degrees in 6 steps
- Removable and width-adjustable calf support
- Reflectors as per standards
Motor
- Power: 320-340 W
- Motor speed: 5300 RPMs
- Gear ratio: 32:1
- Brake: Electromagnetic
- Permissible Gradeability: 12 0
- Drive Range**:20-25 km/Charge
Tyre & Battery
Tire (Puncture free foam-filled rubber tires)
Front–Tire diameter: 220 mm X65 mm /8.66” X 2.55”
Rear– Tire Diameter: 300 mmX100mm /11.81”X4”
Anti tippers-32 mm/1.2” diameter solid
Battery:24 Volt 48 Ah Sealed Maintenance Free VRLA
Charger: Input-230/240 V AC Single phase, Output-24 V-5A DC
Dimensions
- Overall length with footrest and tipper wheel (at 100 degrees): 1050mm
- Overall width: 650mm
- Overall height: 1280mm
- Overall height after folding the seat: 720mm
- Overall weight: 105 Kg
- Ground clearance: 4 “
- Turn circle radius: 860mm
Seat
- Seat depth: 500mm/19.68”
- Seat width: 460mm/18.11”
- Backrest height: 530mm/20.86”
- Backrest width: 420mm /16.53”
- Seat base height from the ground: 580mm/22.83”
- Manual seat height adjustment up to 75mm
- Frame height when seat removed: 415mm/16.33”
Arm Rest
- Width: 75mm/3”
- Length-360mm/14.7
- Height adjustment: 120mm
- Width adjustment: 120mm
Foot Rest
- Length: 190mm
- Width: 340mm
- Length adjustment: 135mm
- Angle adjustment: Up to 180 degrees
