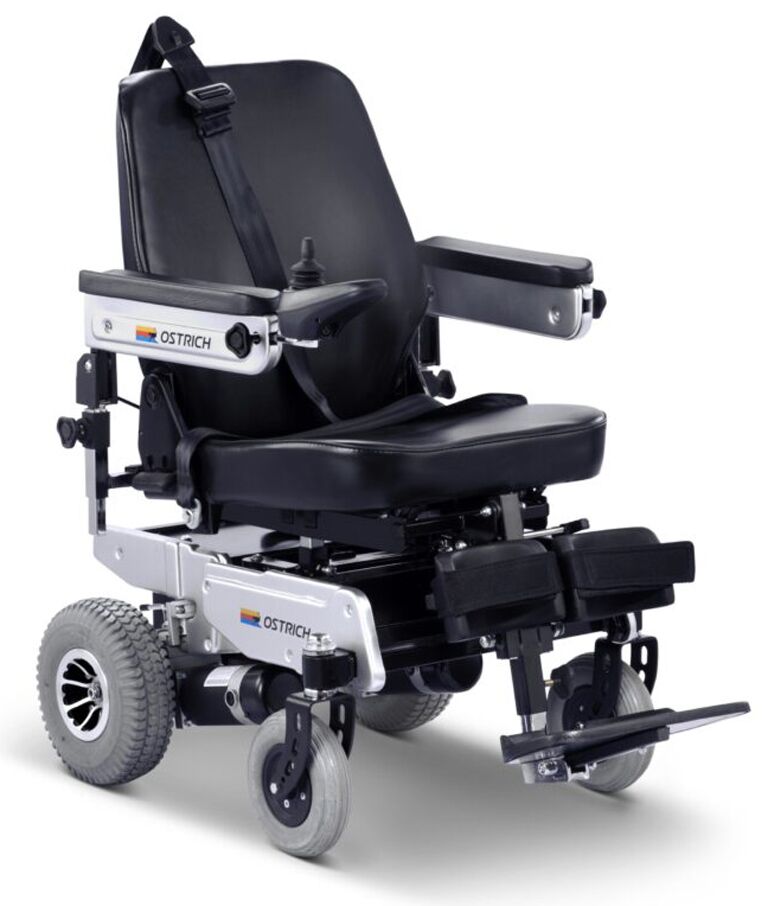

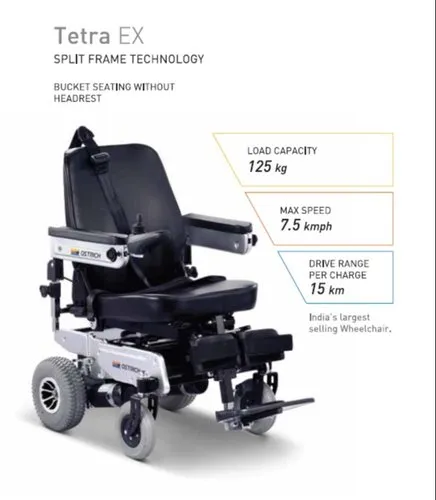

Ostrich Tetra EX, a beautiful and compact new-generation wheelchair powered by revolutionary Split Frame Chassis (SFC) from Ostrich Mobility. This mobility equipment provides excellent maneuverability in both indoor and outdoor conditions. The removable seat design helps with portability.
Technical Specification
- Load capacity: 130 Kg /286lbs
- Speed *:7.5km/H max
- Speed selection: 5 speeds
Features
- Split Frame Chassis (SFC)
- Urine bag holder
- Manual seat height adjustment up to 3 inches
- Call Alarm
- Fault alarm
- Reverse alarm (on request)
- Low voltage alarm
- Key padlocking
- Mobility cut-off while charging
- Auto shut-off after 3 minutes
- Five-speed selector
- Length adjustable joystick control unit(can be changed from left to right and vice versa)
- Foldable, height adjustable, and angle adjustable footrest
- Wide armrest with height and width adjustment
- Bucket seat with a three-point belt
- The seat can be folded for transportation
- The seat reclines 30 degrees in 6 steps
- Removable and width adjustable calf support
- Reflectors as per standards
- One-year replaceable warranty against manufacturing defects
Motor
- Power: 320- 340 W
- Motor speed: 5300 RPM
- Gear ratio: 32:1
- Brake: Electromagnetic
- Permissible Gradeability: 12 Degrees
- Drive Range **:10-15 km /charge
Tyre & Battery
Tire(Puncture free foam filled rubber tires)
Front– Tire Diameter: 190 X50 mm
Rear– Tire Diameter: 260X80mm
Anti tippers– 32 mm/1.2” diameter solid
Battery: 24 V 24Ah Sealed Maintenance Free VRLA
Charger: Input-230/240 V AC Single phase, Output-24 V-5 A DC
Dimensions
- Overall length with footrest and tipper wheel (at 90 degrees): 1000mm /39.37”
- Overall width: 620mm /24.4”
- Overall height: 1300mm/51.18”
- Overall height after folding the seat: 760mm /29.92”
- Overall weight: 84 Kg/185lbs
- Ground clearance:75mm/3 inches
- Turn circle radius:560mm/22.04″
Seat
- Seat depth: 480mm /18.89”
- Seat width: 470mm /18.5”
- Backrest height: 590mm /23.22”
- Backrest width: 460mm /18.11”
- Seat base height from the ground: 520mm /20.47”
- Manual seat height adjustment up to 75mm /3”
- Frame height when seat removed: 350mm/13.77”
Arm Rest
- Width: 80mm/3.14”
- Length:360mm /14.17”
- Height adjustment: 100mm /4”
- Width adjustment: yes
Foot Rest
- Length: 190mm/7.48”
- Width: 340mm /13.38”
- Length adjustment: 135mm /5.31”
- Angle adjustment: Up to 90 degrees
Warranty – 1 Year
Country Of Origin – India
