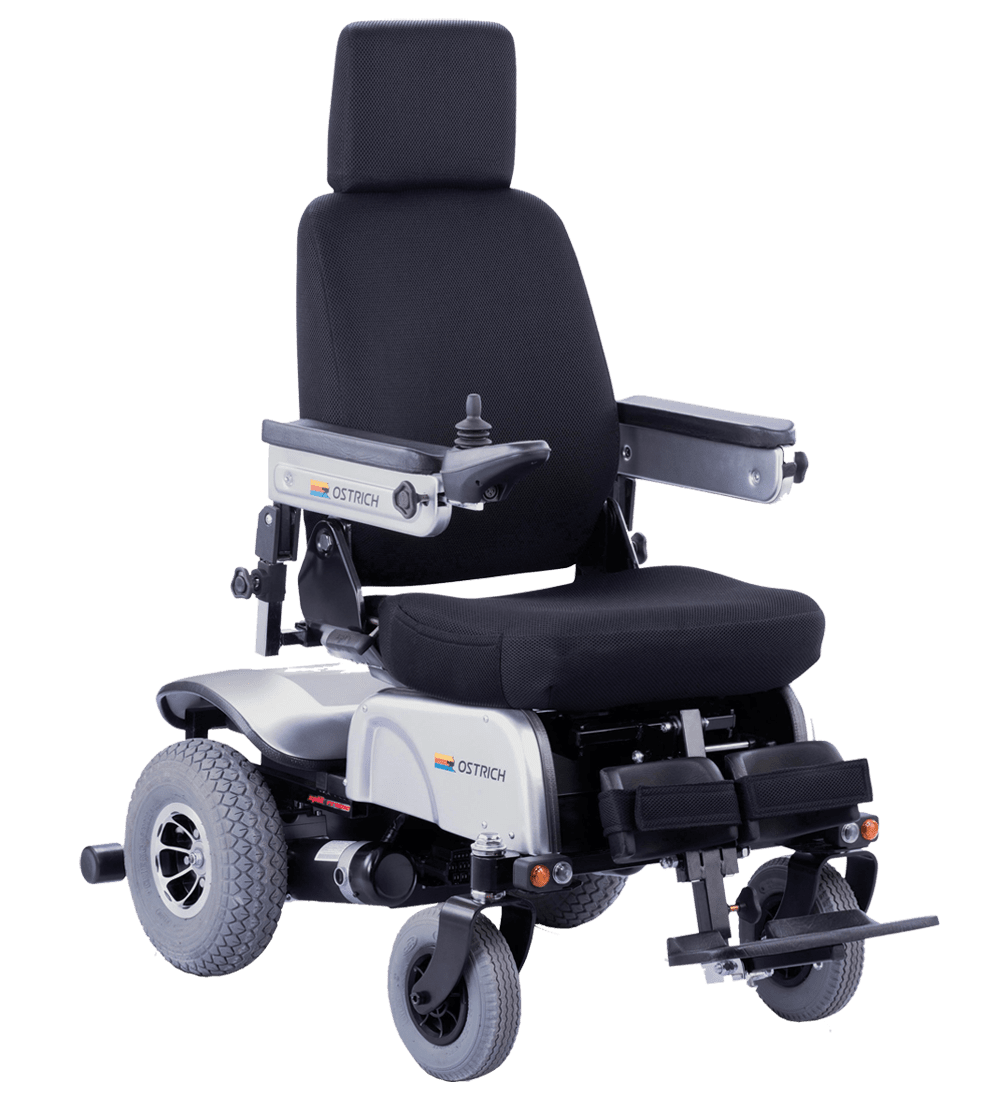

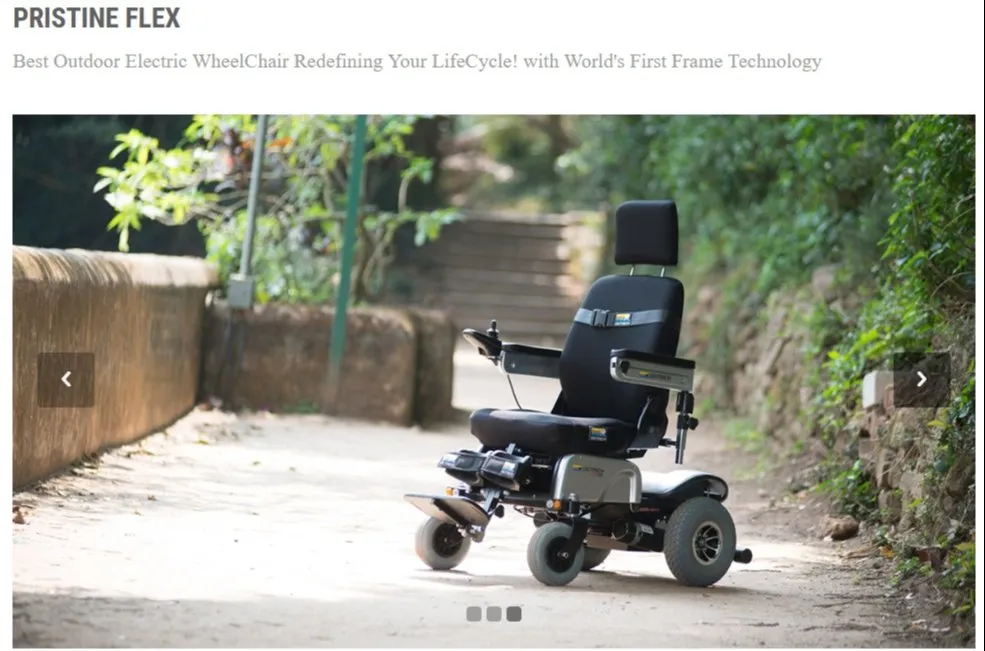

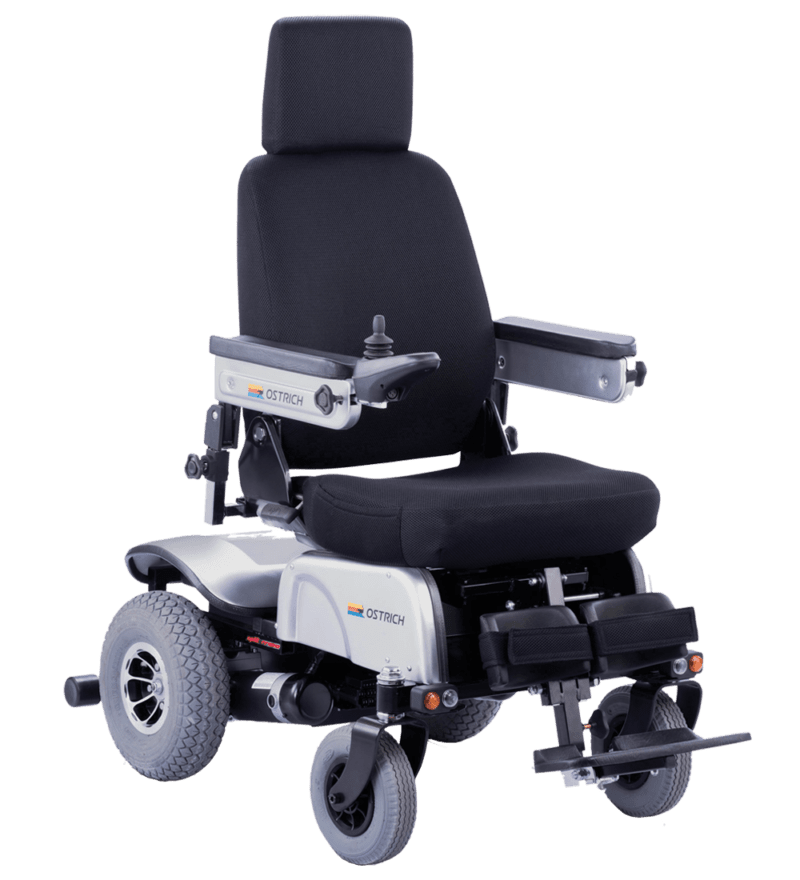

Ostrich Pristine Flex Electric Wheelchair is the most stylish powered wheelchair with revolutionary Split Frame Chassis (SFC). This indoor-outdoor mobility equipment gives great comfort, stability, and safety even in the toughest outdoor conditions. The body panels and the shopping basket make this equipment best suited for your kind of lifestyle.
Ostrich Pristine Flex Electric Wheelchair Technical Specification
- Load capacity: 130 Kg /286 lbs
- Speed:9 km/H max
- Speed selection: 5 speeds
Features
- Split Frame Chassis (SFC)
- Call Alarm
- Fault alarm
- Reverse alarm (on request)
- Low voltage alarm
- Key padlocking
- Mobility cut-off while charging
- Auto shut-off, after 3 minutes
- Five-speed selector
- Length adjustable joystick control unit (can be changed from left to right and vice versa)
- Foldable, height adjustable, and angle adjustable footrest
- Wide armrest with height and width adjustment
- Bucket seat with headrest and lap belt
- The seat can be folded for transportation
- The seat reclines 25 degrees in 6 steps
- Removable and width-adjustable calf support
- Reflectors as per standards
- Headlamp, taillamp, indicators, hazard warning
- Body panels and shopping basket
- One year replaceable warranty against manufacturing defects
Motor
- Power: 450W
- Motor speed: 5300 RPM
- Gear ratio: 32:1
- Brake: Electromagnetic
- PermissibleGradeability: 12 Degrees
- Drive range*: 20-25 km/Charge
Tyre & Battery OF Ostrich Pristine Flex Electric Wheelchair
Tire (Puncture free foam filled rubber tires)
Front– Tire Diameter: 210 X65 mm (8.26”x2.55”)
Rear– Tire Diameter: 310X90mm (12.2”x3.54”)
- Anti tippers–32 mm/1.2” diameter solid
- Battery: 24 V 48 Ah Sealed Maintenance Free VRLA
- Charger: Input-230/240 V AC Single phase, Output-24 V-5 A DC
Dimensions
- Overall length with footrest and tipper wheel (at 90 degrees): 1200mm/47.24”
- Overall width: 670mm/26.37”
- Overallheight: 1300mm /51.18”
- Overall height after folding the seat: 730mm/28.74”
- Overall weight: 107 kg/235.8 lbs
- Ground clearance: 100 mm/4 inches
- Turn circle radius: 620 mm/24.4”
Seat
- Seat depth: 500mm/19.68”
- Seat width: 460mm/18.11”
- Backrest height: 550mm (without headrest)/21.65”
- Backrest width:420mm /16.53”
- Seat base height from the ground: 580mm/22.83”
- Manual Seat Height Adjustment- 75mm/3”
- Frame HeightWhen Seat Removed-415mm/16.33”
Arm Rest
- Width: 80mm /3.14”
- Length-360mm/14.17”
- Height adjustment: 100mm/4”
- Width adjustment: Yes.
Foot Rest
- Length: 190mm /7.48”
- Width: 350mm /13.77”
- Length adjustment: 115mm/4.52”
- Angle adjustment: Up to 90degrees
