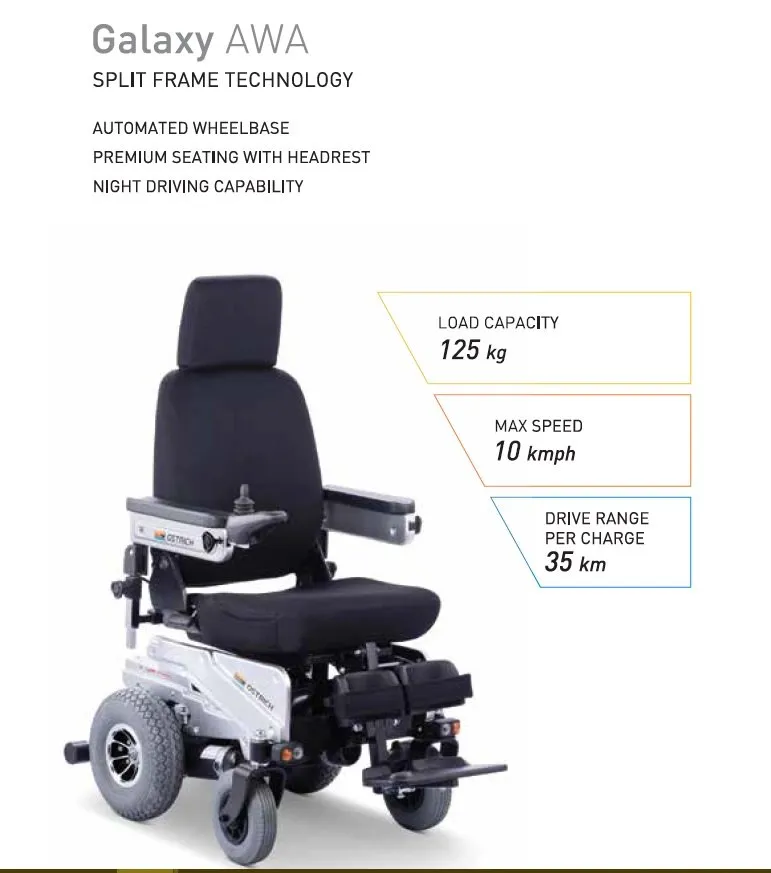

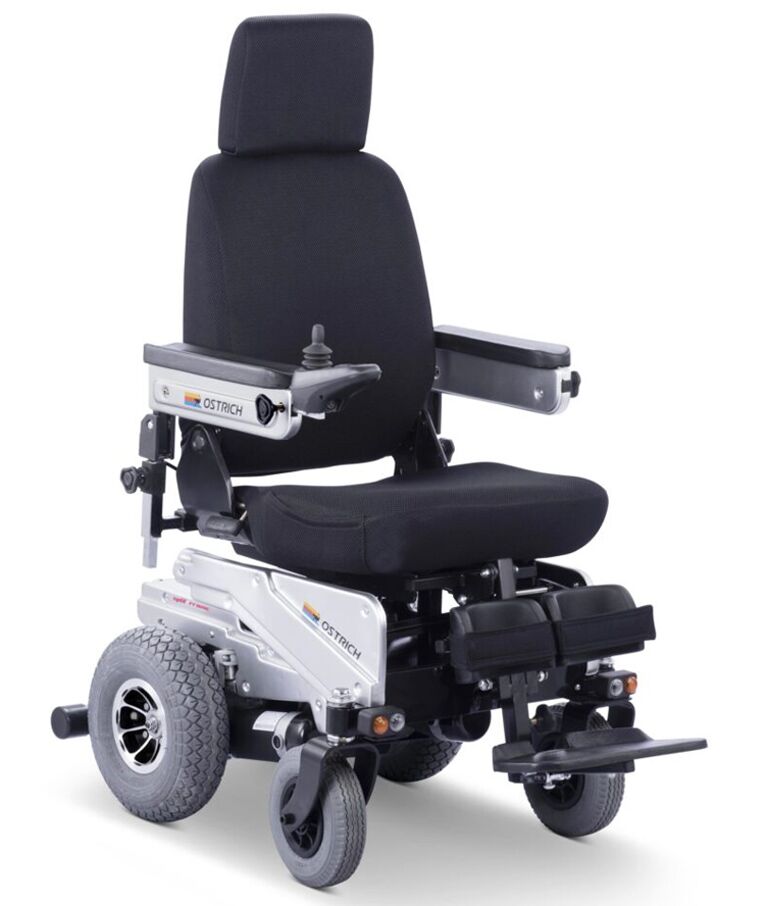

Ostrich Galaxy AWA Electric Wheelchair incorporates two advanced technologies: Split Frame Chassis (SFC) and Automated Wheelbase Adjuster (AWA). These unique technologies make Galaxy, the best personal mobility equipment in very tight indoor conditions and in the toughest of outdoor terrains. Safety, comfort, style, and technology, are all combined to make your mobility the best ever.
Ostrich Galaxy AWA Electric Wheelchair Technical Specification
- Load capacity: 130 Kg /286lbs
- Speed*:9 km/Hmax
- Speed selection: 5 speeds
Features
- Split Frame Chassis (SFC)
- Automated Wheelbase Adjuster (AWA) (100mm)
- Call alarm
- Fault alarm
- Reverse alarm (on request)
- Low voltage alarm
- Key padlocking
- Mobility cut-off while charging
- Auto shut-off after 3 minutes
- Five-speed selector
- Length adjustable joystick control unit (Can be changed from left to right and vice versa)
- Foldable, height adjustable, and angle adjustable footrest
- Wide armrest with height and width adjustment
- Bucket seat with headrest and lap belt
- The seat can be folded for transportation
- 6 Step Seat reclination to 25 degrees.
- Seat sliding |seat angle adjustment
- Removable and width-adjustable calf support
- Reflectors as per standards
- Headlamp, tail lamp, indicators & hazard warning
- One-year replacement warranty against manufacturing defects.
Motor
- Power: 450W
- Motor speed: 5300 RPM
- Gear ratio: 32:1
- Brake: Electromagnetic
- PermissibleGradeability: 12 Degrees
- Drive Range**:20-25 km /Charge
Tyre & Battery of Ostrich Galaxy AWA Electric Wheelchair
Tire (Puncture free foam-filled rubber tires)
Front– Tire diameter: 210mm X65 mm /8.26” X2.55”
Rear– Tire diameter: 310 mm X90mm /12” X3.54”
Ant-tippers-32mm/1.2” diameter solid
Battery: 24 V, 48 Ah Sealed Maintenance Free VRLA.
Charger: Input-230/240 V AC Single phase, Output-24 V-5 ADC.
Dimensions
- Overall length with footrest (at 90 degrees): 980mm-1080mm adjustable /38.58”-42.51”
- Overall width: 650mm /25.59”
- Overall height: 1300mm /51.18”
- Overall height after folding the seat: 750mm/29.52”
- Overall weight: 116Kg/255 lbs
- Wheelbase adjustment: 100mm/4”
- Turn circle radius: 550 mm-650 mm/21.65”-25.59”.
Seat
- Seat depth: 480mm /18.89”
- Seat width: 460mm /18.11”
- Backrest height(without headrest): 530mm /20.86”
- Backrest width: 420mm /16.53”
- Seat base height from the ground: 580mm /22.83”
- Seat sliding: 180mm/7”
- Manual Seat Height Adjustment: 75mm/3”
- Frame Height When Seat Removed: 440mm/17.32”
Arm Rest
- Width: 75mm/3”
- Length:360mm /14.17”
- Height adjustment: 100mm/4”
- Width adjustment: Yes.
Foot Rest
- Length: 190mm /7.48”
- Width: 350mm /13.77”
- Length adjustment: 125mm/4.92”
- Angle adjustment: Up to 90degrees
