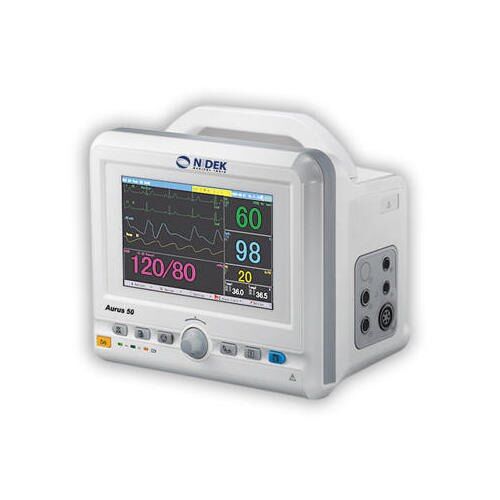

Nidek Aurus 50 8-inch TFT Display Patient Monitor is a premium quality product from Nidek that monitors vital signs like SPO2, Temp, Respiration Rate, ECG, and BP.
Product Details
Parameters Measured | ECG, SpO₂, NIBP, RESP, TEMP |
Type of display | Color TFT LCD |
Display Size | 7 inch |
Suitable for | Adult and Neonatal |
Brand | Nidek |
Model | Aurus 50 |
NIBP
Measurement Mode | Intelligent Oscillation Mode |
Cuff Inflating Time | <30 sec |
Initial Cuff Inflating Pressure | Adult Mode – 180 mm Hg Neonate Mode – 120 mm Hg |
Maximum Allowed Inflating Pressure | 300 mm Hg |
Measuring Deflating Time | Average <90 sec |
Accuracy of Blood Pressure | Maximum Average Error 4 mm Hg |
Resolution of NIBP | 1 mm Hg |
Protection of Over Pressure | Adult – 300 mm Hg paediatric – 240 mm Hg Neonates – 150 mm Hg |
Peripheral Capillary Oxygen Saturation
SPO2 Measurement Range | 0 – 100% |
Accuracy | ≤±2% (70 – 100%) ≤±3% (50 – 69%) |
Sensor | Two Wave LED |
Resolution of SpO₂ | 1% |
Range of Pulse Rate | 40 – 250 beat/min |
Accuracy of Pulse Rate | ±2 beat/min |
RESP
Method of RESP | Thoracic Impedance |
RR Measurement Range | 10 – 100 rpm |
Accuracy of RESP | 1 bpm |
TEMP
TEMP Measurement Range | 20 – 45°C |
Measurement Unit | °C/F Selectable |
ECG
Lead Configuration | Standard 3 Leads RA, LA, LL |
Lead Mode | I, II, III, I, II, III, aVR, aVL, aVF, V (7 Leads) |
5 Leads Cable | RA, LA, LL, RL and V |
Gain of ECG | 0.25, 0.5, 1, 2 |
Heart Rate Range | 30 – 300 bpm |
Accuracy of ECG | ±10% or 5 bpm (choosing the greater) |
Resolution of ECG | 1 bpm |
Sensitivity | >200 uV |
Input Impedance | >5 MΩ |
Features
- In-built battery back-up & recorder
- Big eyes warning light
- Intelligent pressure oscillation
- 1000 NIBP measurement data storage
- Can be used with Electro Surgical Unit
In The Box
- Device
- SPo2 and PR probe
- ECG Probe and electrodes
- Temp Probe
- Power cable
- Manuals
