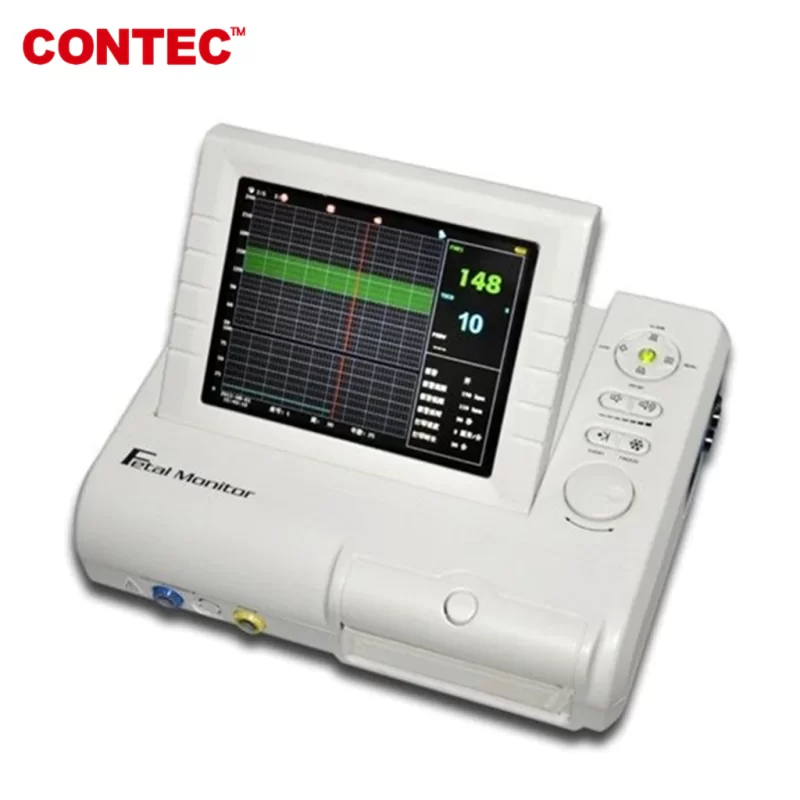

Contec Fetal Monitor – CMS 800G

CMS800G Fetal Monitor can acquire fetal heart rate, and maternal uterine contraction when pregnancies over 28 weeks to provide reference data for clinical use. The monitor can be used individually or connected with a PC through RJ45 Interface for the purpose of central monitoring. It is only suitable for the equipment in hospitals, clinics, doctor’s offices and patients at home by professional medical personnel.

Contec Fetal Monitor  Specification

Safety

Type of protection against electric shock: Class Ⅰ
Degree of protection against electric shock: Type B applied part
Working Voltage: AC 100 V~240 V
Frequency: 50 Hz/60 Hz
P＜60 VA
Fuse: T1.6AL250V

Print

Record paper: Z-fold paper
Print width: 112 mm
Valid print width: 104 mm
Paper speed: 1 cm/min, 2 cm/min, 3 cm/min(optional)
Network interface: RJ 45

Ultrasound probe

Nominal Frequency: 1.0 MHz
Work Frequency: 1.0 MHz±10%
Negative peak sound pressure : p_<1 MPa
Output beam intensity : Iob<20 mW/cm2
The peak time-space peak intensity: Ispta<100 mW/cm2
The average time-space peak intensity: Isata<10 mW/cm2

FHR

Range: 50 BPM~240 BPM
Resolution: 1 BPM
Accuracy: ±2 BPM

TOCO

Range: 0~100%
Resolution: 1%
Nonlinear error: ≤±10%
RZ way: manual
Fetal Marking
Manual button

In The Box

Fetal Monitor

A three-in-one Transducers(Ultrasound TransducerⅠ, TOCO Transducer, Remote Marker)
A User Manual
Two abdomen belts
An earth line
Record paper(two sets)
A power cord
Two Fuses

Physical Characteristics

Dimension: 320 mm (L) × 260 mm (W) × 80 mm(H)
Weight: about 3 Kg

Country Of Origin – China

Warranty – 1 Year
