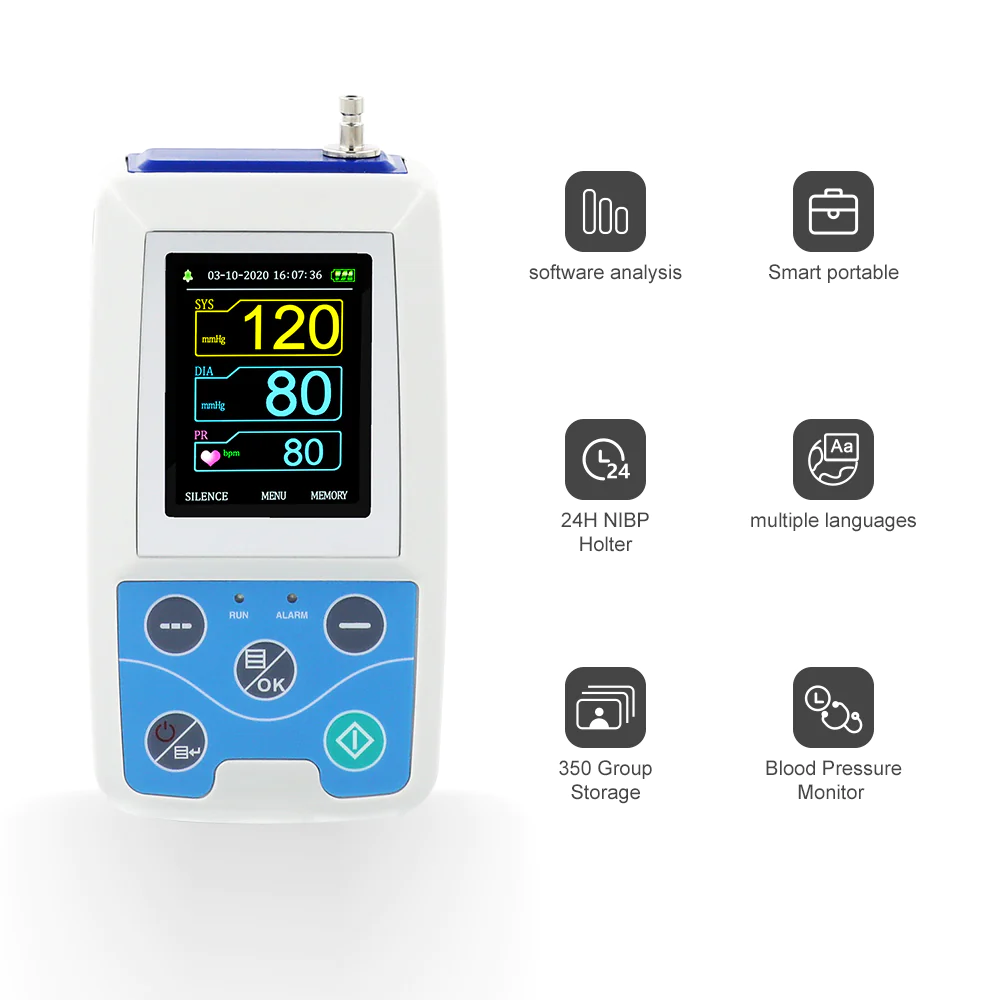

Contec ABPM 50 24 Hour Ambulatory BP Monitor

Contec ABPM 50, a handheld ambulatory monitor designed on the basis of oscillography theory. The device can monitor the blood pressure of the human body for up to 24 continuous hours in a dynamic manner, providing an accurate diagnosis. The device is suitable for hospitals, clinics, and other medical institutions.

Features

• Easy to use, compact, and portable.
• Patient group: Adult, pediatric, neonate
• 24-hour ambulatory NIBP Monitoring Function, Up to 350 groups of ambulatory NIBP Data can be recorded at once.
• Manual measurement can record up to 300 data groups at once.
• High-definition color TFT display, strong visibility
• By using data review interfaces such as “data table”, “trend graph”, or “big font”, NIBP information is easily readable.
• Display of low-power prompt, alarm, message, and time
• Two types of units are available: mmHg/kPa
• The display interface can be changed between Chinese and English
• The Parameter Alarm Disposal function is optional.
• Communicate PC with software that can perform data review, measurement results analysis, trend graph, report printing, and other functions

Features of Software

• Connect the device via a USB interface.
• Download the NIBP measurement result using your terminal device.
• Display trend graphs in scoop shape, trend graphs with filling, histograms, pie charts, and correlation line graphs.
• Edit each piece of NIBP information and add annotations.
• Edit the basic information: doctor’s advice and NIBP status instructions, current medication taken information, etc.
  Support report printing and print preview.

Technical Specifications Of Contec ABPM 50

NIBP:
Measurement Method- Oscillometry
Upper arm measurement
Automatic Measurement Interval- 15, 30, 40, 60 minutes, 90 minutes, 120 minutes, 180 Minutes
Measure range- pressure:0kPa (0mmHg),38.67kPa 290mmHg
Resolution- 1mmHg
Accuracy- +-3mmHg
Prompt parameter- SYS, DIA
Inflation by an automatic force pump
Deflation- automatic multistep deflation
PR:
Measurement range- 40bpm240bpm
Resolution- 1bpm

Safety

Power supply- DC 3V (2×1.5V AA alkaline dry battery)
Safety type- Type BF internal powered device with defibrillation protection

Software Features

• USB interface is used to connect the PC software to the device
• Download the NIBP measurement result from the terminal device
• Can display scoop-shape trend graphs,filling-type trend graphs, histograms, pie charts, and correlation line graphs.
• You can edit and annotate every piece of NIBP information.
• Edit basic information. Doctor’s advice, NIBP status, current medication taken information, etc.
• Print the report.

In the Box

Contec ABPM 50

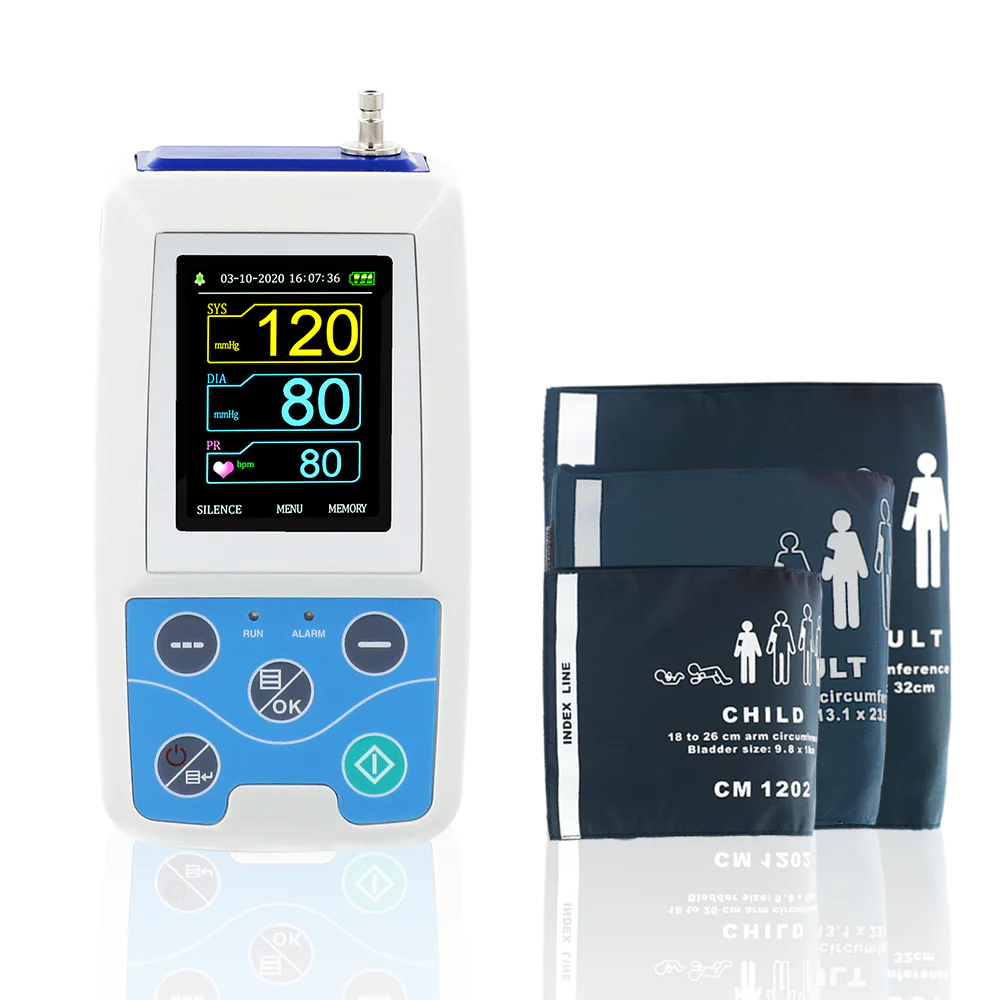

Cuff for Adult 1pc
Download software
User manual 1pc
USB Data Line 1pc
Pack 1pc
