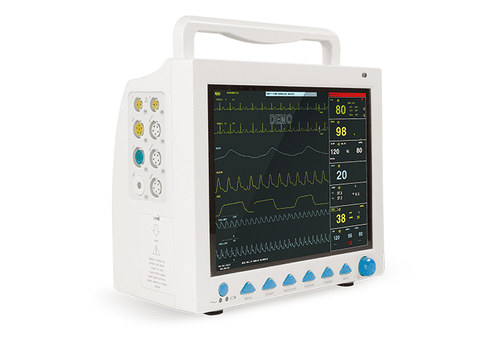

Contec CMS 8000 5 Para Monitor (FDA Approved )

Contec CMS 8000 has abundant functions that can be used for the clinical monitoring of adults, pediatrics, and neonates. Users may select different parameter configurations according to different requirements. The monitor, power supplied by 100-240V～,50/60Hz, adopts a 12.1” color TFT LCD displaying real-time data and waveform. It can synchronously display an eight-channel waveform and full monitoring parameters equipped with an optional 48mm thermal recorder. The monitor can be connected to the central monitoring system via wire or wireless network to form a network monitoring system.

Functions

• Standard parameters: ECG, RESP, SpO2, PR, NIBP, dual-channel TEMP
• ECG Heart rate(HR)
• ECG waveform
• Arrhythmia and ST-segment analysis
• RESP Respiration rate(RR)
• Respiration waveform
• SpO2 Oxygen saturation(SpO2)
• Plethysmogram(PLETH) waveform
• Pulse rate(PR)
• Bar graph
• NIBP Systolic pressure(SYS), Diastolic pressure(DIA), Mean pressure(MEAN)
• TEMP T1, T2, TD
• IBP(optional) CH1：SYS，DIA，MAP
• CH2：SYS，DIA， MAP
• IBP waveform
• CO2 EtCO2 Optional
• InsCO2:Inspired Minimum CO2
• AwRR: Air Way Respiration
• It has abundant functions, such as audible and visual alarms, trend data storage and output, NIBP measurement, alarm event marking, and drug concentration calculation, etc.

Features

• 12.1” TFT color LCD, multi-language interface(Simplified Chinese, Traditional Chinese, English, French, German, Turkish, Spanish, Portuguese, Italian, Dutch, Romanian, Russian, Kazakh, Polish, Czech).
• Fanless design, quiet, energy-saving, and clean, which reduces the possibility of cross-infection.
• All-round monitor for adult, pediatric, and neonate.
• With the standard interface, oxygen graph, trend graph, big character interface, and view bed, convenient to observe.
• Finish all operations with keys and knobs.
• Maximum 8-channel waveform synchronous display.
• Display 7-lead ECG waveform on one screen, cascade ECG waveform display
• Adopt digital SpO2 technology, anti-motion, and anti-ambient light interference, and measurement can be performed under the circumstance of weak filling.
• Heart rate variability (HRV) analysis function
• NIBP measurement mode: Manual/AUTO/STAT, storage for 4800-group NIBP data.
• Review for 71 alarm events of all parameters and 60 arrhythmia alarm events.
• Drug concentration calculation and titration table functions.
• One-touch printing of trend graph
• Connect to Central Monitoring System by 3G, Wi-Fi, or wired mode.
• AC/DC, built-in rechargeable lithium battery achieves uninterrupted monitoring.
• Anti-high frequency surgical unit, defibrillation-proof (special leads are necessary).

Performance

▲ECG

• Lead mode: 3-lead or 5-lead
• Lead selection: I, II, III, aVR, aVL, aVF, V
• Waveform: 5-lead, dual-channel
• 3-lead, single-channel
• Gain: 2.5mm/mV, 5.0mm/mV, 10mm/mV, 20mm/mV, 40mm/mV
• Scan speed: 12.5mm/s, 25 mm/s, 50 mm/s

HR:

• Measurement and alarm range: 15～350 bpm
• Accuracy: ±1 % or ±1 bpm, whichever is greater
• Alarm accuracy: ± 2 bpm
• Resolution: 1 bpm
• ST-segment monitoring:
• Measurement and alarm range: -2.0 mV ～ +2.0 mV
• Accuracy: -0.8 mV～+0.8 mV ±0.04 mV or ±10%, whichever is greater
• Other range: unspecified
• Arrhythmia analysis: ASYSTOLE, VFIB/VTAC, COUPLET, BIGEMINY, TRIGEMINY, R ON T, VT>2,
• PVC, TACHY, BRADY, MISSED BEATS, PNP, PNC
• Pacemaker: yes

▲RESP

• Method: R-F(RA-LL) Impedance
• Respiration rate:
• Measurement and alarm range: 0～150 rpm
• Resolution: 1 rpm
• Measurement accuracy: ±2 rpm
• Alarm accuracy: ±3 rpm
• Apnea alarm: 10～40s
• Scan speed: 6.25 mm/s, 12.5 mm/s, 25 mm/s

▲NIBP

• Method: Oscillometry
• Mode: Manual/AUTO/STAT
• Measurement interval in AUTO mode: 1/2/3/4/5/10/15/30/60/90/120/240/480/960 minutes
• Measurement period in STAT mode: 5 minutes
• Measurement and alarm range: 10 ～ 270 mmHg
• Resolution: 1 mmHg
• Cuff pressure accuracy: ±3 mmHg
• Measurement accuracy:
• Maximal mean deviation: ±5 mmHg
• Maximal standard deviation: 8 mmHg
• Over-pressure protection:
• Adult mode: 297±3 mmHg
• Pediatric mode: 240±3 mmHg
• Neonatal mode: 147±3 mmHg

▲SpO2

• Measurement and alarm range: 0 ～ 100%
• Resolution: 1%
• Measurement accuracy: 70%～100%: ±2%;
• 0%～69%: unspecified

▲PR

• Measurement and alarm range: 30 ～ 250 bpm
• Measurement accuracy: ±2 bpm or ±2%, whichever is greater

▲TEMP

• Channel: dual-channel
• Measurement and alarm range: 0 ～ 50℃
• Resolution: 0.1 ℃
• Accuracy: ±0.1 ℃

▲EtCO2

• Method: Sidestream or Mainstream
• Measuring Range: 0～150mmHg

Resolution:

• 0～69 mmHg, 0.1 mmHg
• 70～150 mmHg, 0.25 mmHg

Accuracy:

• 0～40 mm Hg ±2 mm Hg
• 41～70 mm Hg ±5%
• 71～100 mm Hg ±8%
• 101～150 mm Hg ±10%
• AwRR Range: 2～150 rpm
• AwRR Accuracy: ±1BPM
• Apnea Alarm: Yes

Accessories

• Adult fingertip SpO2 probe (5-pin)
• Adult NIBP cuff
• NIBP extension tube
• ECG lead cable
• ECG electrode
• Temperature probe
• Power cord
• User Manual （GB only）on request for other Language

Physical characteristic

• Dimension: 314 mm(L) × 145 mm(W) × 264 mm(H)
• Weight: 3.9 Kg

Brand Warranty – 1 Year

Country Of Origin -China
