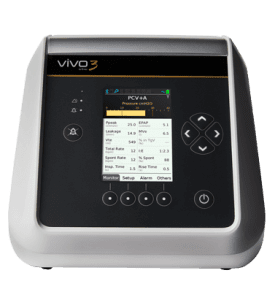

Breas Vivo 3 is a new-generation bi-level ventilator designed for personalized and comfortable respiratory support – both non-invasive and invasive – for non-dependent patients with chronic breathing insufficiency. The intuitive interface ensures ease of use. A comprehensive set of modes and extensive monitoring capabilities allow for great flexibility, making the ventilator a perfect choice for a variety of patients.
Features
COMPACT
- One Platform-Three Models
- Lightweight and Compact
- Integrated Humidifier
- Internal Battery 3h
ADAPTABLE
- Wide range of Modes
- Adult and paediatric (>10kg)
- Intuitive Interface
- Extensive therapy data
- Suitable for use in hospital and home
- Closer monitoring with Breas accessory box
CONNECTED
Making Connected Care more Insightful
- EveryWare – Secure cloud-based remote monitoring*
- PC Software – Desktop-based with Live Viewer
Breas Vivo 3 Technical Specifications
Settings / Performance
Ventilation Modes
S, ST, T, PSV, PCV+A , CPAP
Adult/Pediatric
>10kg
Profiles
3 settable profiles
IPAP
4 – 40 cmH2O
EPAP
2 – 20 cm H2O
Breath Rate/Back-up Rate
0-40 bpm
Inspiratory Time
0.3 – 3s
Rise Time
1 – 9
Inspiratory Trigger
1 – 9
Expiratory Trigger
1 – 9
Minimum Inspiratory Time
Off, 0.3 – 3 s
Maximum Inspiratory Time
Off 0.3 – 3 s
Target Volume
100 – 1500 ml
Auto-EPAP
On/Off, Pressure Limit: Max EPAP +2 cmH2O – 40 cmH2O, PS 2-38cm Min/Max EPAP: 2 – 20 cmH2O, EPAP Step: 0.5 – 2 cmH2O, Relax Time: 2-12 mins/Off
HFNT
4-60L/min
Ramp (Up/Down)
Off 10-60mins
Humidifier Level
1-5
Heated Circuit
Off, 1-5
Patient Circuit
15mm, 22mm, Custom
O2 Bleed in (Device)
0-30L/min
Monitoring
Displayed data
Ppeak, EPAP, Leakage, MV, Vte % in TgV, Total Rate I:E, Spont Rate, % spont, Inspiratory time, Rise time, SpO2, Pulse, Rate
Power Supplies
Mains supply
100 to 240 V AC
External DC
24 V DC
Internal battery
3 hours
Alarms
Alarms
High Pressure, Low Pressure, High Breath Rate, Low Breath Rate High MV, Low MV, Rebreathing Apnea, Disconnection, High SpO2, Low SpO2, High Pulse Rate, Low Pulse Rate, Low Last Power Source
Dimensions
W x H x D
166 x 185 x 200 mm
Weight
1.8 kg
Noise level (at 10 cmH2O constant pressure)
Less than 28 dB(A)
Connectivity and Software
Built-in connectivity
USB
Compatible Software
PC Software and is prepared for EveryWare Remote Monitoring*
Plug-and-Play accessories
SpO2, Nurse Call, Remote Alarm, Accessories Box
Other
Humidification
Integrable water chamber
Circuits
Cleanable & Disposable leakage circuits with/without heated wires
Confirm Stop
On, Off
Compliance Data (on Screen)
Min Daily Usage Off, 1-24hrs, Total Usage Hours, Total Days, Days with Usage Average Usage, Days Compliant, AHI
Country Of Origin- Sweden
Warranty – 2 Years
Frequently Asked Questions (FAQ’s)
Q: What is Breas Vivo 3 and how it works?
A: Breas Vivo 3 is a Bilevel Positive Airway Pressure machine with a Backup rate and it can be used in the treatment of sleep apnea and other respiratory insufficiency diseases. It Provides two different pressures Inspiratory pressure and Expiratory pressure, with a Backup rate that can be customized according to the needs of the patient.
Q: What is the use Of the Vivo 3 Bipap Machine?
A: Breas NIV Machine provides Positive airway pressure throughout the Night or during the time of therapy which is helpful in keeping the airway open in case of Sleep apnea and is widely used for respiratory insufficiency as well, Please contact your physician to understand what works best for your patient.
Q: What is the price of the Breas Vivo 3 Machine In India?
A: Breas Vivo 3 Price in India ranges from ₹ 299000 and goes up to ₹ 350000 depending upon the Model and accessories Supplied with the product.
Q: What Modes are available In the Vivo 3 NIV Machine?
A: There are six different ventilation modes in Breas Vivo 3 S, ST, T, PSV, PCV+A, and CPAP. To understand what suits your patient contact your consulting physician.
Q: What is the Country of Origin Of the Breas NIV Machine?
A: Vivo 1 Bipap Machine is manufactured in Sweden.
Q: How to maintain the Breas Vivo Bipap Machine?
A: In Order to maintain Breas vivo 3 clean the outer surface of the product with a damp cloth regularly, change the filter every six months, and replace consumables Like tubes and masks in a year.
Q: Where you can buy Breas NIV Machine & accessories?
A: Breas Vivo 3 Bipap Machine is Medical Equipment and should be bought from an Authorized Supplier, Breas Vivo series devices and accessories can be bought online at Megamed.in.
