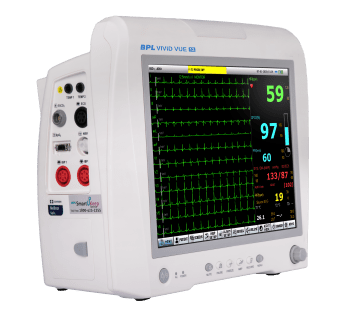

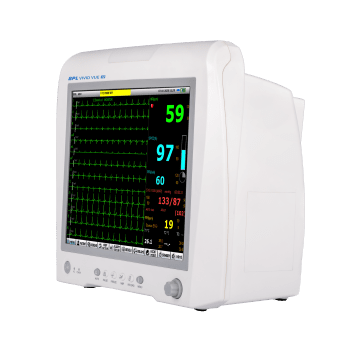

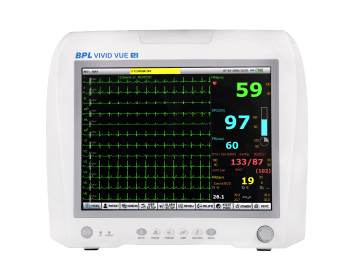

BPL Vivid Vue 12i Patient Monitor for OT and critical care environment, Vivid Vue 12 comes with a 12.1″ high-resolution display with an optional touchscreen feature and allows monitoring advanced parameters such as IBP, CO2, Gas monitoring. It has integrated HL 7 communication protocol with HIS connectivity.
BPL Vivid Vue 12i Patient Monitor Features
- 12.1″ high-resolution display (optional touchscreen)
- Standard configuration – ECG, RESP, SpO2 BPL OxySat+, NiBP (SunTech), TEMP (optional 12-lead ECG)
- Optional parameters – Dual IBP, ETCO2 (Masimo Sensors), Anesthesia Gas Monitoring (Masimo Sensors)
- Enhanced connectivity – HL7 with HIS connectivity, USB for patient data output, DVI for external (Slave) display, Nurse call function.
- Optional: Medius+ central nursing station with Remote monitoring feature
- Convenient feature of standby, night mode & snapshot (screenshot)
- Comprehensive data storage available
- High-performance Li-ion battery, providing up to 3.5 hrs backup time in low power consumption
BPL Vivid Vue 12i Technical Specifications
General
| Specification | Details |
|---|---|
| Display | Vivid Vue 12: 12.1″ (Optional Touch Screen) |
| Resolution | Pixel: 800×600 pixels |
| Display Information | 7 waveforms display / 12- Lead ECG interface |
| Dimension | Vivid Vue 12: 345mm×181mm×292mm |
| Weight | Vivid Vue 12: < 3.6kg |
| Built-in Battery | Rechargeable Lithium-ion battery, 14.8V/2600mAH; ≥ 3.5 hrs of backup |
| Battery Charge Time | ≤ 3.5 hours |
ECG / Respiration Specifications
| Specification | Details |
|---|---|
| Lead Mode | Standard: 5 lead Optional: 12 lead & 3 lead |
| Heart Rate Range & Accuracy | 10–300 bpm; Accuracy: ±1% or ±1 bpm, whichever is greater |
| Gain | 2.5 mm/mV (×0.25), 5 mm/mV (×0.5), 10 mm/mV (×1), 20 mm/mV (×2) |
| Sweep Speed | 12.5 mm/s, 25 mm/s, 50 mm/s |
| ST-Segment | Detection Range -2.0mV to +2.0mV |
| Respiration Method | Thoracic impedance |
| RR Measurement Range & Accuracy | 1–150 breaths per minute; Accuracy: ±2 bpm |
| Delay of Apnea | 10s, 15s, 20s, 25s, 30s, 35s, 40s, 45s, 50s, 55s, 60s |
NIBP Specifications
| Specification | Details |
|---|---|
| Measurement Method | Automatic oscillometry |
| Systolic Range | ADULT: 40–260 mmHg PEDIATRIC: 40–230 mmHg NEONATE: 40–130 mmHg |
| MAP Range | ADULT: 20–220 mmHg PEDIATRIC: 26–183 mmHg NEONATE: 26–110 mmHg |
| Diastolic Range | ADULT: 20–200 mmHg PEDIATRIC: 20–160 mmHg NEONATE: 20–100 mmHg |
| Pressure Transducer Accuracy | ±3 mmHg between 0 mmHg – 300 mmHg (0°C–50°C) |
| Auto Measurement Interval | 1min, 2min, 3min, 4min, 5min, 10min, 15min, 30min, 60min, 120min, 240min, 480min, 960min |
| STAT Mode | Yes |
SPO2 Specifications
| Specification | Details |
|---|---|
| BPL Oxy Sat+ SPO2 | Range: 0%-100%; Accuracy: ±2% (70-100%); 0%-69% not defined |
| PR Measurement | 25–250 pulses/min |
| Masimo SPO2 | Range: 1%-100%; Accuracy: ±2% (adult/child); ±3% (neonate); within 70%-100%, 0%-69% not defined |
| PR Measurement | 25–240 pulses/min |
Display Resolution
- 1%
Perfusion Index (PI)
| Brand | PI Resolution |
|---|---|
| BPL Oxy Sat+ | 0.06%–20%; Accuracy not defined; Resolution: 0.01% |
IBP Specifications
| Specification | Details |
|---|---|
| Number of IBP Channels | 2 |
| Pressure Name | ART, CVP, RAP, RVP, LAP, ICP, P1, P2 |
| Measurement Range | ART: 50–400 mmHg, PA: 6–120 mmHg, CVP: -10–40 mmHg, RAP: -10–40 mmHg, etc. |
| Accuracy | ±2 mmHg or ±1% of reading, whichever is greater |
| Resolution | 1 mmHg |
