Features
- 3.2-inch High definition color display
- Infusion Modes: Rate Mode, Time Mode, Weight Mode, Stage Mode, Drip Rate Mode
- In-built Drug Library
- Dual Bolus Modes: Manual & Automatic bolus
- 3 levels of occlusion pressure (programmable)
- 2000 history records and last configuration memory
- Horizontal & Vertical fixation clamp
- Precise control of the infusion rate and volume with
Particular stage infusion mode - Double CPU ensures safety and reliability of infusion

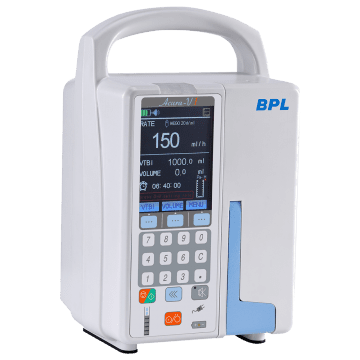

BPL Acura V1 Volumetric Infusion Pump Specifications
Brand – BPL Medical Technologies
Model- BPL Acura V1 Volumetric Infusion Pump
IV Sets- Standard IV sets of 20d/ml and 60d/ml, with diameter 3.4-4.5mm
Infusion Modes- Rate Mode, Time Mode, Drug/ Weight Mode, Drip Rate Mode(optional)
Volume Limit- l 1-9999 ml
Infusion Accuracy- ≤± 5%
Bolus – Default 600ml/h, Values adjustable within 10-1200ml/hr (20d/ml IV set)
Default 150ml/h ,Values adjustable within 10-150ml/hr (60d/ml IV set)
Flow Rate Range 0.1 ml/hr-1200ml/hr (20d/ml IV set)
0.1 ml/hr-150ml/hr (60d/ml IV set)
Battery Backup – 4 hours at 25ml/hr after fully recharged
Power Supply 100V-240V AC，50Hz/60Hz
Battery Type Internal rechargeable Ni-MH DC12V 2000mAh
Weight – 1.8Kg Approx.
Dimensions- 167mm(L) X 125mm(B) X 115mm(H) ( handgrip and clamp excluded)
Operational Conditions- Temperature: +5˚C – +40˚C
Relative Humidity ≤80%
Atmospheric Pressure 70KPa – 106Kpa
Storage & Transportation
Conditions – Temperature: -22˚C – +55˚C
Relative Humidity : 10% – 90%
Atmospheric Pressure 70KPa – 106Kpa
Brand Warranty – 1 Year
Country Of Origin- India
