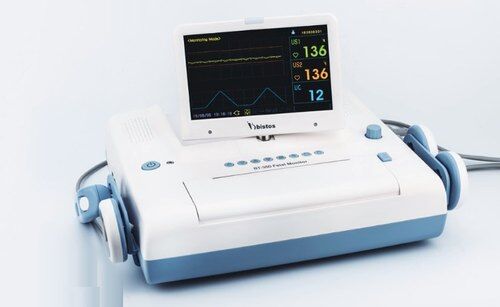

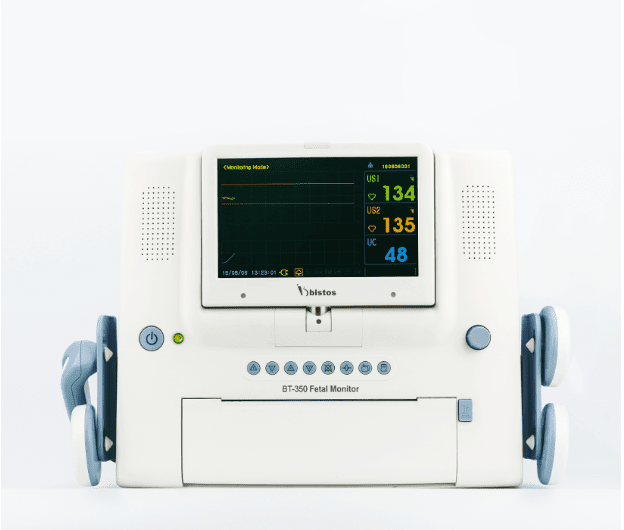

Bistos Fetal Monitor Product Specification:
Model | BT350 |
FHR Range (BPM) | 30 ~ 240 / 50 ~ 210 |
UC Probe | External type |
UC Range | 0 – 99 |
Display Type | 7” Color LCD |
Trend Data Save | 450 Hours |
Alarm Sound Level | 2 levels |
Alarm Sound | Tachycardia, Bradycardia |
Information Sound | Probe Disconnection, Printer door open, No Paper, Low Battery |
Printer Speed | 1, 2, 3cm/minute, 10cm/min(Trend mode only) |
Thermal Paper (Z-fold) | 150mm(W) x 13.5m(L) |
Auto Print | 10, 20, 30, 40, 50, 60minute |
PC Interface | RS-232C / Ethernet |
Power | AC100-240V (50/60Hz) DC18V/2.5A |
Weight (Kg) | 2.7 |
Battery Life (h) -Optional | 3.5-5 |
Product Description
Product Description:
- Up to 150 patients date saving
- Fetal heart sound play and record in PC
- Multiple language support
- Quick guide display
- Various installation method
Dual Pulsed Doppler:
- Ultrasound Frequency: 0.985MHz
- Intensity: 10mW/cm2 or less
- FHR Range: 30~240bpm FHR
- Accuracy: ±2% of Range
- Auto-detection of Dual Fetal Movement
- External Type
- Frequency Response: DC~0.5HZ
- Reference(Zero) Control
- Measurement Range: 0~99 units
Printer:
- Thermal Array Type
- Print Speed: 1,2,3, cm/min, high speed
- Auto print: Off,10,20,30,40,50,60 min
- Paper Feeding Function
Display:
- 3 Channels (FHR I, FHR II, UC)
- 7″ Wide TFT-Color LCD:800(W) X 480(H) BT-350LCD
- Large 7-segment volume lever LED : BT-350 LED
Function:
- Mark Function
- FHR II Offset Function
- Auto Print function
- Fetal movement print function
- Multi-language quick guide function: BT-350 LCD
Trend:
Data Saving for 450 hours(3hr/person): BT-350 LCD
Accessory Standard:
- Ultrasound Doppler Probe 2ea
- Event Marker Jack 1ea
- Power Adaptor Cord 1ea
- Probe Belt 3ea
Content Of Box
- Bistos Fetal Monitor
- Doppler Probe
- UC Probe
- Event Marker
- AST Probe (Option)
- Z-folded type Paper
- Probe Belt
- Power Cord
- Power Adaptor
- GP Battery
- Ultrasound Gel
Country Of Origin – Korea
